Kern Load/Force Measuring Cell CS 100-3Q1
SKU: CS 100-3Q1
Kern Load/Force Measuring Cell CS 100-3Q1
MSE Supplies offers a Load/Force Measuring Cell from KERN & SOHN GmbH. They are the ideal helper for getting started with the analysis of your optically active solutions in the laboratory.

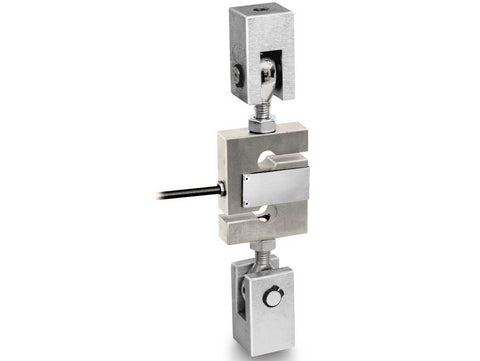

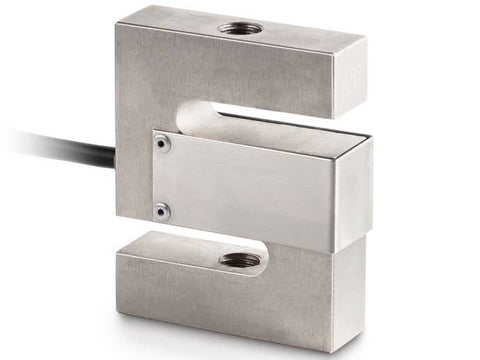

6-wire "S" measuring cell made of nickel-plated steel for force and mass measurement.
Country of Origin: Made in Germany
Manufacturer: KERN & SOHN GmbH
Product Features
- RoHS compliant
- Area of application: for tensile and compressive force measurement
- Suitable for handing scales, weigh hoppers and other weighing devices as well as force measurement devices and test stands.
Product Parameters
| Weighing capacity [Max] | 100 kg |
| Measuring range force [Max] (N) | 1 kN |
| Design | "S" shaped cell |
| Directions of force | tension, compression |
| Measuring applications | force, mass |
| Load cell - Combined error | 0,017% |
| Load cell OIML class | C3 |
| Load cell - Resolution (verifiable) | 3000 e |
| Load cell - Y-value | 10000 |
| Load cell - characteristic value - nominal | 2 mV/V |
| IP protection - complete device | IP67 |
| Material | steel, nickel-plated |
| Load cell connection | 6-wire |
| Cable length | 5 m |
| Mounting - force application | Threaded hole M12 |
| Mounting - force dissipation | Threaded hole M12 |
About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!
MSE Supplies is an authorized distributor for KERN & SOHN GmbH.
