KITTEC CTH8000L Industrial-Line CTH Bogie Hearth Furnaces, Up To 1,320°C - MSE Supplies LLC

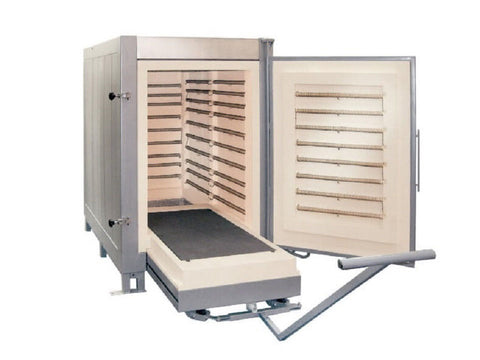

KITTEC CTH8000L Industrial-Line CTH Bogie Hearth Furnaces, Up To 1,320°C

SKU: CTH8000L

  • £123,66700
  • Save £13,74100

KITTEC CTH8000L Industrial-Line CTH Bogie Hearth Furnaces, Up To 1,320°C

The KITTEC CTH models have heating on support bars. The high-quality and complex design with support bars is the guarantee of a long service life. The five-sided all-round heating provides consistently uniform firing results thanks to optimum temperature distribution. High quality lightweight refractory bricks and the multi-layer rear insulation allow an absolutely even temperature distribution and a maximum firing temperature of 1,000 or 1,320°C.
Our added quality: All CTH bogie hearth furnaces are equipped with a 2-zone controller – the guarantee of optimum and uniform temperature distribution. The volume multiplied by 0.8 can be used as a guideline for the maximum loading weight. However, we can optionally provide higher loading capacities if required.

Further features of model series CTH:

  • High-quality and innovative multi-layer premium insulation for the lowest energy consumption and the fastest heating up, even in the upper temperature range
  • 2-zone controller, excellent temperature distribution
  • Large exhaust flaps in the ceiling, can be opened manually
  • Bogie hearth optionally on guided rollers or on rails
  • Stable SiC ceiling plate, no contamination from above
  • SiC bottom cover for the heating elements with a maximum of thermal conductivity
  • Solid steel frame, powder-coated
  • Kanthal heating elements with low surface load
  • Extremely solid lightweight refractory brick ASTM 26 in regions with considerable mechanical stress
  • Door can be opened wide (> 180°)
  • Customised products possible at any time

Specifications:

Model CTH8000L
Form Bogie hearth kiln
Firing chamber width [mm] 1250
Firing chamber depth [mm]

4600
Firing chamber height [mm] 1200
Volume [l] 6000
External width [mm] 1720
External depth [mm] 4860
External height including base [mm] 2140
Max. temperature [°C] 1000
Power [kW] 200
Voltage [V] 400 3N~
Current [A] 3x2900
Weight [kg] 8000
