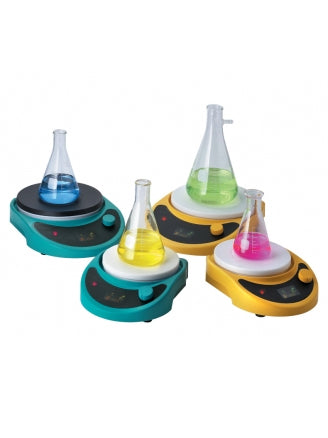

Jeio Tech Lab Companion Magnetic Stirrers (Digital)
SKU: AAH331215BU
Lab Companion Magnetic Stirrers (Digital)
Buy Lab Companion products from MSE Supplies at the best value.
MSE Supplies offers Lab Companion Magnetic Stirrers (Digital) from Jeio Tech. They have powerful magnets and motors, which guarantee a high-speed and a good management of the devices.
Country of Origin: Made in South Korea
Manufacturer: Jeio Tech
Main Features:
- Spark-less, silent and durable BLDC motor
- Wide top plate
- Non-slip strength rubber feet
- Two non-slip silicone plate covers (white & black) provided
- Non-slip strength rubber feet
- Convenient program control
- Bright and vivid VFD and responsive touch buttons
- Easy-settable digital timer (1 min. to 99hr. 59min.)
- Spark-less, silent and durable BLDC motor
- M10 threaded hole to hold a support rod
Accessories:
-
Octahedral magnetic stirring bar
- Cylindrical magnetic stirring bar
- Oval magnetic stirring bar
- Plastic retriever (PP, PTFE)
- Support rod (M10)
- Clamp holder (C-5, C-7, C-10)
- Plate covers (black & white)
- Silicone pad
For accessories, please contact us so we can help you choose appropriate products for your needs.
Technical Specifications:
|
SKU# |
Persian Blue |
AAH331215BU |
AAH331315BU |
|
Yellow |
AAH331215YU |
AAH331315YU |
|
|
KR plug |
AAH331215BK |
AAH331315BK |
|
|
General Data |
Body material |
Polypropylene (PP) |
|
|
Dimension (W×D×H) (inch) |
8.3×11×2.8 |
10.2×14×2.8 |
|
|
Net weight (lbs) |
2.98 |
3.86 |
|
|
Electrical requirements |
AC 100 ~ 240V, 50 / 60Hz |
||
|
Power consumption (W) |
6 |
||
|
Protection class (DIN EN 60529) |
IP42 |
||
|
Top Plate |
Material |
Polypropylene with non-slip silicon cover |
|
|
Dimension (Ø, inch) |
6.69 |
8.66 |
|
|
Technical Data |
Speed control |
Feedback control with PID |
|
|
Stirring capacity (Liter, Water) |
4 |
5 |
|
|
Speed range (rpm) |
30 to 2,000 |
||
|
Speed display |
VFD |
||
|
Motor rating input / output (W) |
2.9 / 1.6 |
||
|
Magnetic bar, Max. (Ø×L) (inch) |
0.31×1.57 |
0.39×1.97 |
|
|
Load, Max (lbs) |
44.09 |
55.12 |
|
About Jeio Tech: Jeio Tech products are put through rigorous quality control from the most basic metal processing to final inspections. Based on over 28 years of technical experience in instrument manufacturing, their highly integrated team of engineers strive to deliver outstanding quality to their clients. Their professional know-how will always keep their reputation as the primary partner for the customers research needs.
MSE Supplies is an authorized distributor for Jeio Tech.
