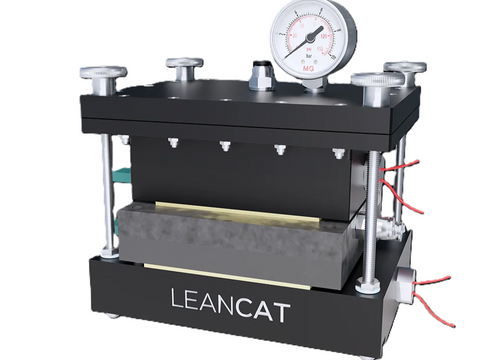

LEANCAT Air-pressed cell (5 cm²) - Heating cartridges 230 V
SKU: AirCell-5-230V
LEANCAT Air-pressed cell (5 cm²) - Heating cartridges 230 V
Buy LEANCAT products from MSE Supplies at the best value.
Overview
- Compression hardware for single-cell testing
- Suitable for low-temperature PEM fuel cells or electrolysers
- Compression system uses pressurized gas
- Fully controlled tightening force
- Uniform force distribution
Applications
Research and development of fuel cells and electrolysers requires many experiments to be carried out under various conditions. Leancat AirCells offer repeatable and well-controlled conditions as well as high durability thanks to its robust and clean design.
Specifications
| Active Area | 4.8 – 50 cm² |
| Monopolar Plate Material | High-density graphite or titanium |
| Base And Upper Plate Material | Anodized aluminium |
| Max. Operating Pressure | 6 bar |
| Temperature Measurement | 2 thermocouples included |
| Fuel Compatibility | H2, methanol, ethanol |
| Current-Collector Material | Gold-coated copper |
| Max. Operating Temperature | 80 °C |
| Cell Heating: | 2 cartridge heaters |
MSE Supplies offers a variant of water electrolyzer. Please contact us for more information.
