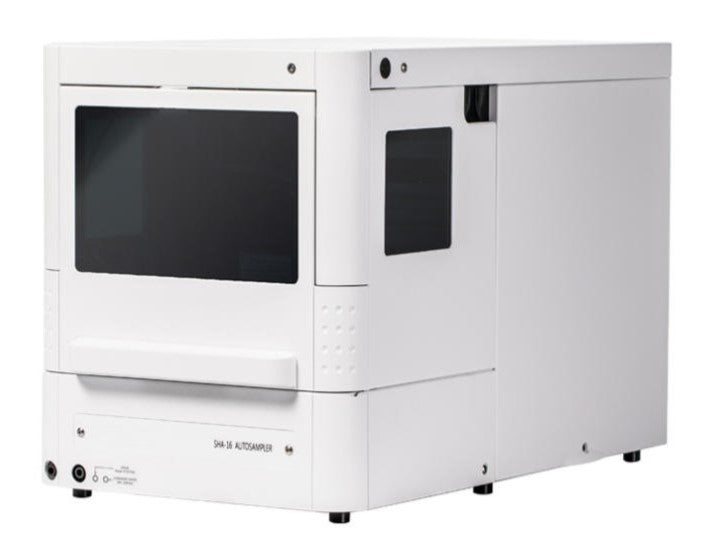

MSE PRO Autosampler for Chromatography System, Model 2
SKU: MA2611
MSE PRO™ Autosampler for Chromatography System, Model 2
Overview
The MSE PRO Autosampler for Chromatography System Model 2 is a versatile autosampler that incorporates advanced sampling technology for rapid sampling and efficient rinsing. Its high-performance, multi-solvent needle-washing procedure ensures complete elimination of residual samples. The device also features effective sample cooling at 4°C. With a compact design, the Model 2 autosampler can be conveniently stacked on top of the instrument, offering unparalleled performance. It serves as the ideal companion for the ion chromatography system.
Features
- 76-Position Injection Tray: Accommodates more samples for continuous, high-volume injections, with the ability to specify the sample position.
- Large Injection Volume: Supports a single 13 mL sample bottle to meet the requirements of larger injection volumes.
- Enhanced Sample Injection: Utilizes a steering gear to switch between the inner and outer circles of the disc, increasing the number of injections.
- Efficient Needle Washing: A dedicated pure water bottle for needle washing is centrally located on the disc, eliminating the need for frequent refills of needle washing liquid. Needle washing is performed automatically with each change of injection position.
- Seamless Compatibility: Designed for perfect integration with liquid chromatography and ion chromatography systems, offering ease of operation.
Specification
| Model | SHA-16 |
| Valve | PEEK version 6p/2pos |
| Needle | Coated needle 5 µL |
| Buffer Tubing | 1000 µL |
| Loop Volume | 100 µL PEEK |
| Syringe | 500 µL |
| Sample Capacity | 2 x 96 (2mL) well plates |
| 2 x 384 well plates | |
| 2 x 48 standard (1.5 mL) vial positions | |
| 2 x 12 prep (10 mL) vial positions | |
| 1 x 84 standard (1.5 mL) vial positions & 3 prep (10 mL) vial positions | |
| Combined Vial Positions | 1 x 84 standard vial positions & 3 prep vial positions |
| Injection Cycle Time | 17 sec, 38 sec incl. wash |
| Full Loop Injection | RSD <= 0.3% |
| Partial Loop Injection | RSD <= 0.5% |
| µL Pick Up Injection | RSD <= 1% |
| Carry-over | <0.05% |
| Software | Clarity |
| Intelligent Model | Cooling |
| Other Versions | Dual-channel autosampler |
| Weight | 19 kg (without cooling); 21 kg (with cooling) |
| Dimensions (Without Cooling) | 300 x 510 x 360 mm |
| Dimensions (With Cooling) | 300 x 575 x 360 mm |
