MSE PRO Integrated Cold Isostatic Press, 300MPa Max. Working Pressure - MSE Supplies LLC

MSE PRO Integrated Cold Isostatic Press, 300MPa Max. Working Pressure

SKU: PR0500

  • £57,64000
  • Save £6,40500

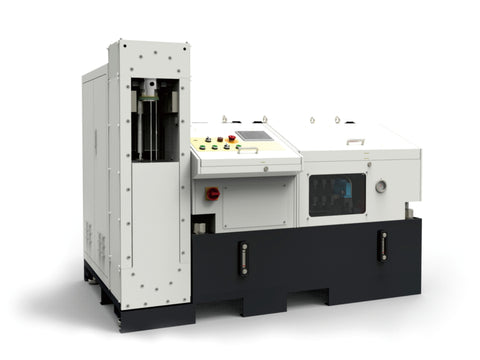

MSE PRO™ Integrated Cold Isostatic Press, 300MPa Max. Working Pressure

MSE SUPPLIES offer an Integrated Cold Isostatic Press, which is suitable for the integrated experimental model specially produced for scientific research institutions and universities. CIP have been widely applied in such industries as advanced ceramics, powder metallurgy, NdFeB magnetic materials and hard alloy.

  • This CIP comes equipped with a single charging basket and does not require any additional auxiliary devices.
  • Featuring a visual full-color graphics user interface.
  • The maximum working pressure can reach up to 300MPa, providing flexibility to meet various material pressing requirements. (Note: The final maximum pressure value could be customized to be 350Mpa or 400Mpa if needed when placing the order.)
  • It offers a high-precision pressure curve that is adjustable and controllable. Additionally, the entire cycle data can be recorded and tracked, allowing for comparison of forming effects under different pressing processes.
  • With a height of less than 1.6m and requiring less than 3m2 of installation space, it is suitable for most laboratories.

We offer other types of CIPs. For more information, please contact us now.

Specifications:

SKU PR0500
Diameter of high pressure vessel (mm) 100
Depth of high pressure vessel (mm) 300
Maximum working pressure (MPa) 300
Measurement accuracy of high pressure (Mpa) 0.5
Heating Can be heated to 85 degrees Celsius (Optional)
Feeding method Automatic picking
Buck-boost rate Set by user
Working medium Emulsion (95% water+5% emulsified oil)
Press time (Unloaded test) The shortest time from 0 to 300MPa is less than 1min.
Pressurization speed Can set the boost time from one pressure to another
Press pause The dwell time that can be set at a pressure point
Target pressure value Settable
Keeping time (s) 0~9999
Drop of pressure ≤ 5MPa (Allow automatic pressure compensation)
Depressurization Can set the depress time from one pressure to another
Power 380V, three phase, Max. power 11kw
Display Full color touch screen
Record data export interface USB
Drive method Hydraulic drive
Cooling method Water or air cooling
Dimensions (mm) About 1750×1190×1400
Net weight (t) <2.5
