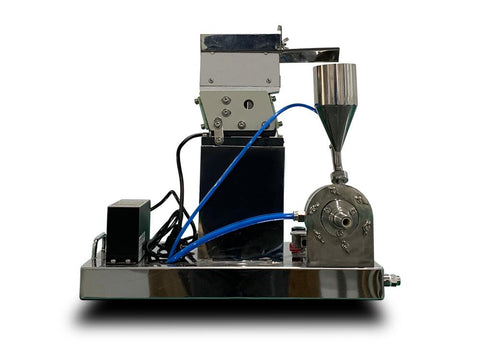

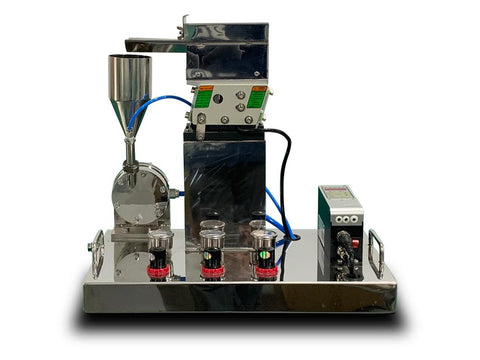

MSE PRO™ Lab Airflow Crusher for Solid State Battery

MSE PRO™ Lab Airflow Crusher efficiently performs ultra-fine crushing while maintaining material purity and protecting heat-sensitive properties. It is ideal for preparing solid electrolytes and electrode materials, enhancing uniformity and surface area to improve ion conductivity. Its main use is in processing key materials for solid-state lithium batteries, boosting energy density and stability.

  • Efficient ultra-fine crushing: It can reduce materials to ultra-fine particles, increasing the surface area and making it suitable for high-precision applications.

  • Low-temperature operation: Operates under low temperatures, preventing heat-sensitive materials from being damaged and preserving their physical and chemical properties.

  • High purity: The crushing process avoids contact with metal, minimizing contamination and ensuring high material purity.

  • Uniform dispersion: The crushed particles have a uniform size, promoting better dispersion and consistency, which helps enhance performance.

  • Wide applicability: Suitable for various powder materials, especially in processing solid-state battery materials, nanomaterials, and other advanced materials.

Brand: MSE PRO™

Manufacturer: MSE Supplies LLC

MSE Supplies offers a variety of Lab Airflow Crushers. Please contact us for more information.

Specifications:

SKU# BR0466
Voltage 220V, 50Hz

Compressed air volume

1m3/min, pressure 0.6mpa (Customer supply)

Feeding system

Surface precision polishing

Feed rate is adjustable by frequency conversion

The volume is about 1L

The joints are clamped, easy to disassemble and clean

Screw type Airflow Crusher main machine

All connecting parts adopt quick-mounting structure, convenient disassembly and assembly


The grinding body is composed of 3 parts, and CNC machining makes no rotating parts


Smooth inside without dead Angle, easy to clean and disinfect


The inner surface is treated with ceramic lining, and the outer surface is made of 304 stainless steel


Suitable for clean laboratory use, no dust spillover


Fluidizing cavity optimized flow field design and improved particle size stability of 1 nozzle ring


Install 4 supersonic nozzles, the material in the fluidization,instant crushing


Nozzle ring replaceable, easy to disassemble and clean

Pneumatic accelerator

1 Laval nozzle and 1 Venturi nozzle.


No dead angle, easy to disassemble and clean.


The interface adopts quick-loading type.

Product tank

Volume about 1L.


Clamp connection, easy to disassemble and clean.

Electrical control box

Carbon steel spray shell.

Including pressure gauge, pressure reducing valve, speed control button, time relay and all electrical components.

Including all connecting lines and push-in fittings from the control box to the pulverizer.


PU material air pipe.

Machine size

304SS: 700*500*800mm

316SS: 700*500*1000mm

Machine Weight

304SS: 35kg

316SS: 50kg
