MSE PRO Metallographic Single Disc Center, Multi-point Loading Switchable Automatic Grinder/Polisher

SKU: MA1379

  • £7,05600
  • Save £2,03600

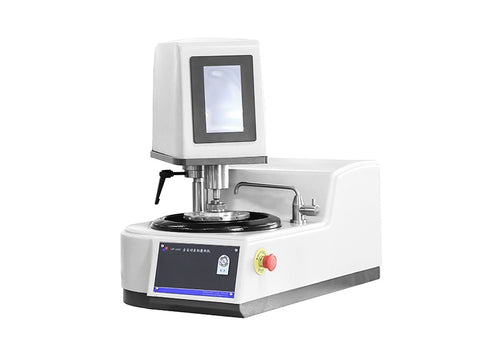

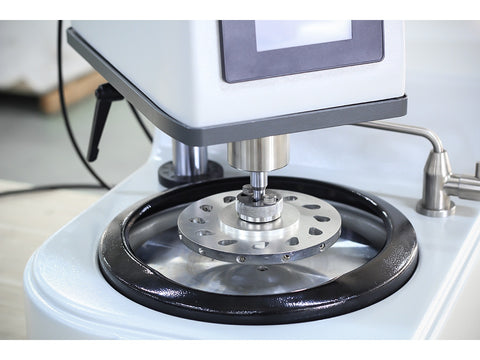

MSE PRO™ Metallographic Single Disc Center, Multi-point Loading Switchable Automatic Grinder/Polisher

MSE Supplies offers a Metallographic Single Disc Center/Multi-point Loading Switchable Automatic Grinder/Polisher which is used for the preparation of samples from materials such as metals and non-metals for microstructure examination and analysis. The principle of the grinding and polishing machine involves the use of mechanical force and abrasive materials to remove surface defects, oxide layers, rust, and other substances from the sample. It also smooths and polishes the sample surface to enable microstructural observation.

Improve your metallographic sample preparation efficiency with the Metallographic Single Disc Center/Multi-point Loading Switchable Automatic Grinder/Polisher. Independently control the loading force, adjust it during operation, and enjoy high precision, smooth operation and low noise. Perfect for those seeking professional, scientific and objective results.

Brand: MSE PRO™

Manufacturer: MSE Supplies LLC

MSE supplies offers various metallographic grinder and polisher with different capacities as well as other metallographic equipment, please contact us for more information.

                                                                  Technical Specifications:

                                                                  SKU

                                                                  MA1379

                                                                  Working Disk Diameter

                                                                  Standard Configuration: φ254mm (with magnetic transfer disk)

                                                                  Rotation Speed

                                                                  100-1000RPM (Adjustable rotation direction)

                                                                  Grinding Head Speed

                                                                  0-100RPM

                                                                  Loading Range

                                                                  30-200N

                                                                  Loading Mode

                                                                  Center or multi-point loading switchable

                                                                  Sample Holder

                                                                  30mm 6holes

                                                                  (20mm 6holes, 40mm 3holes, 50mm 3 holes are optional)

                                                                  (Other size can be customized)

                                                                  Motor Power

                                                                  750W

                                                                  Power Supply

                                                                  110V 60Hz, 2KW

                                                                  Dimensions

                                                                  760x470x700mm

                                                                  Weight

                                                                  90kg
