Nickel/Chromium (Ni/Cr 80/20 wt %) Pellets Evaporation Materials, 6mm Dia. x 6mm Length - MSE Supplies LLC

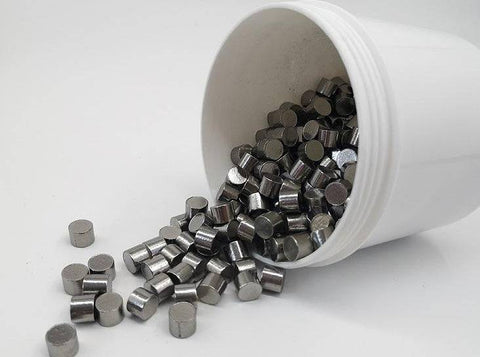

MSE PRO Nickel/Chromium (Ni/Cr 80/20 wt.%) Pellets (6mm Diameter x 6mm Length) Evaporation Materials

SKU: TA3109

  • £12900
  • Save £1700

MSE PRO™ Nickel/Chromium (Ni/Cr 80/20 wt.%) Pellets (6mm Diameter x 6mm Length) Evaporation Materials

Nickel-chromium-based alloys (Ni-Cr) are known for their excellent corrosion resistance and favorable electrical properties. They are common in electronic industrial applications such as integrated circuit and thin-film resistors manufacturing due to their unique electrical properties and the ability to adjust them using methods like composition altering. Ni20Cr shows high resistivity with a near-zero temperature coefficient of resistance (TCR), and the gauge factor of these also shows a very low dependence on temperature, making it a good transducer material for resistive strain gauge production. Evaporated Ni20Cr coating is widely used for resistors, potentiometers, fusible links, read-only memories, capacitive humidity sensors and to provide corrosion resistance for a variety of materials.

The dimensions and purities can be customized upon request. Please contact us for customization or bulk orders.

Chemical Composition Ni/Cr 80/20 wt.%
Theoretical Density (g/cm3) 8.31 (lit.)
Electrical Resistivity at room temperature (ohm.mm2/mm)  1.08 (lit.)
Thermal Conductivity (W/m.K) 19.2 (lit.)
Mean Coefficient of Thermal Expansion (μm/m.K) 12.5 (lit.)

MSE Supplies offers a variety of crucibles for evaporation materials. We can customize the dimensions based on your requirements.

References:

1. Thin‐film NiCr resistor. Journal of Vacuum Science and Technology 15, no. 2 (1978): 370-372.

2. AES, AFM and TEM studies of NiCr thin films for capacitive humidity sensors. Thin Solid Films 317, no. 1-2 (1998): 173-177.
