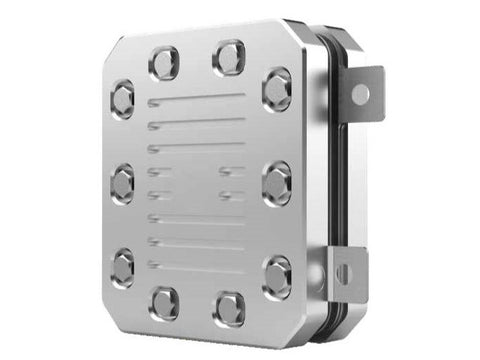

MSE PRO PEM Water Electrolyzer, Hydrogen Production Rate 300mL/min

MSE PRO PEM Water Electrolyzer, Hydrogen Production Rate 300mL/min

SKU: MA2503

  • £64800
  • Save £7200

MSE PRO™ PEM Water Electrolyzer, Hydrogen Production Rate 300mL/min

Technical Specification

Oxygen production ml/min >450 Hydrogen is mixed with oxygen
Hydrogen production ml/min >300 Pure hydrogen, single out
Temperature of circulating water °C 25-45
Water consumption ml/min <80 Pure water, deionized water
Circular manner / Gravity cycle/pump cycle
Hydrogen purity % 99.99 After drying
Water electrolysis method / Water electrolysis  Proton exchange membrane electrolysis
Maximum stress Mpa 0.5
TDS PPM Anode water ≤1  Recommended ion-exchange resin for circulating water
Single cell voltage V 1.75-2.5
Power supply A, V Constant current 20A, Constant voltage 6V
Dimensions (without lugs) mm 94×34×106
Dimensions (including lugs and fittings) mm 109×53×106
Weight kg 0.9
Application area / GC (gas phase) gas and carrier gas, ELCD (conductivity detector) reaction gas, Ed (atomic emission spectrum detector) reaction gas, hydrogen-rich water machine, hydrogen absorber, etc.

Working Principle

The proton exchange membrane (PEM) only allows water and positive ions to cross between compartments and also serves as the electrolyte in the cell, eliminating the need for hazardous liquid electrolytes like concentrated potassium hydroxide. PEM water electrolysis splits pure deionized water (H2O) into its constituent parts, hydrogen (H2) and oxygen (O2), on either side of the membrane. When a DC voltage is applied to the electrolyzer, water fed to the anode (oxygen electrode) is oxidized to oxygen and protons, while electrons are released. The protons (H+) pass through the PEM to the cathode (hydrogen electrode), where they meet electrons from the other side of the circuit and are reduced to hydrogen gas. The two reactions that occur in the cell are as follows:

2H2​O→4H++4e−+O2​

2H++2e−→H2​

Thus, the only possible components of the streams are hydrogen, oxygen, and water moisture, as shown in the figure below.

MSE Supplies offers a variant of PEM electrolyzer stacks. Please contact us for more information.
