MSE PRO Uncoated Fused Silica Flat Window, Round Shape - MSE Supplies LLC

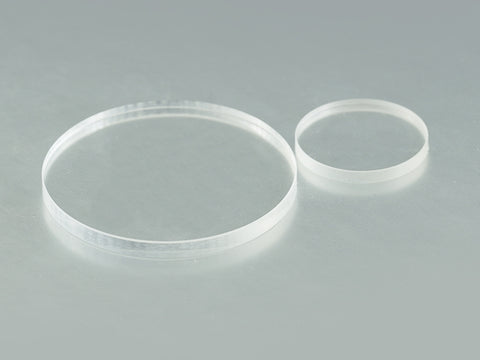

MSE PRO Uncoated Fused Silica Flat Window, Round Shape

SKU: UUVR-5-2

  • £4500
  • Save £500

MSE PRO™ Uncoated Fused Silica Flat Window, Round Shape

Optical Windows are flat plane-parallel plates, which are often used to protect electronic sensors or detectors without blocking optical transmission. Optical Windows do not change the magnification of a system. We offer a variety of optical windows, which cover the wavelength range from ultraviolet (UV) to infrared (IR). Fused Silica windows are ideal for UV range and laser applications.

Coating treatments can also be applied to enhance its transparency and anti-reflective properties. Please contact us for customized coating services.

Technical Data:

Diameter  5-50.80mm
Diameter Tolerance +0.0/-0.1mm
Thickness 2-4mm
Thickness Tolerance ±0.2mm
Parallelism
 <30"
Surface Quality 60-40
Bevel 0.2-0.5mmX45°
Surface Figure λ/4@633nm
Material UV grade Fused Silica

MSE Supplies can offer a variant of optical elements, with different materials, size, surface quality and coating. Please contact us for customization or bulk orders.
