PEC 7MM x 7MM Magnetic Mount Photo-Electrochemical Cell

PEC 7MM x 7MM Magnetic Mount Photo-Electrochemical Cell

Buy Redox.me products from MSE Supplies at the best value.

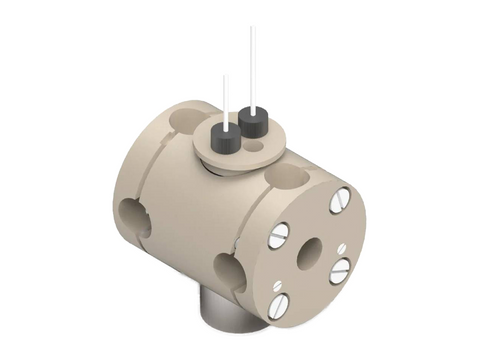

This is a horizontally mounted, single compartment photo-electrochemical cell for measurements of materials based on 7x7 mm² sample. This cell allows several approaches to perform measurements in 2- or 3-electrode setups. It is designed to investigate performance of 2D materials and thin film photo-anodes such as monolayer graphene. The cathode (counter electrode) and reference electrode are mounted in a top casing. The cell elements are made of PEEK. It well fits aqueous (FKM/EPDM O-Rings) and organic solvent (FFKM O-Rings) electrolyte requirements. The construction is gas-tight having gas inlet and outlet, which can be used to bubble the solution and evacuate gases from the chamber.

Application note

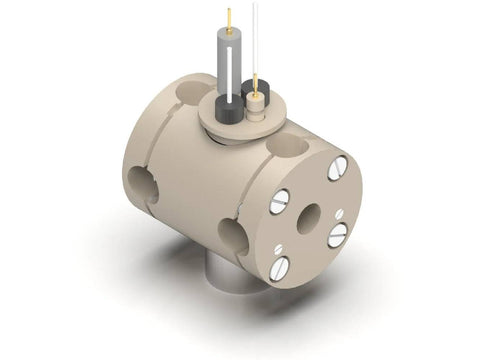

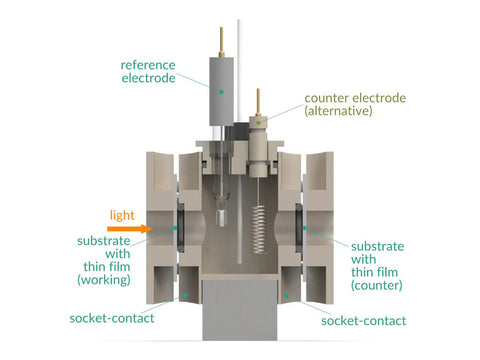

The sample is installed in the classical magnetic mount facing the cell chamber. In 2-electrode setup, the counter electrode is placed in the socket close to the working electrode while the remaining socket is plugged. When 3-electrode setup is required, the reference electrode is placed close to the measured sample to limit the effect of electrolyte resistance, while the counter electrode occupies the remaining socket. Various auxiliary electrodes are suitable for this cell including metal wire, gauze and foil electrodes as well as non-metal electrodes. Typical applications include: basic photochemistry, photolytic water splitting, photoinduced charge separation and photocorrosion.

Specification:

Nominal exposure area: 0.2 cm²
Minimum electrolyte volume: 10 mL
Maximum electrolyte volume: 15 mL
Electrode plug diameter: 6 mm
Substrate size: 7 mm x 7 mm
Substrate thickness: 0.5 mm

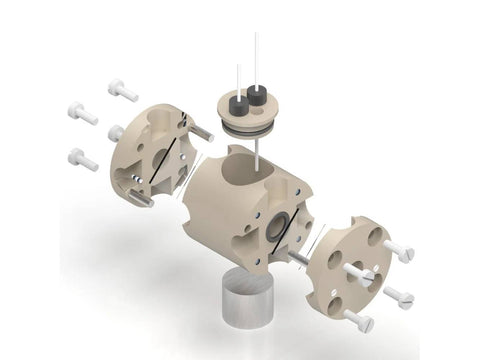

Product Includes

1 x lid – 0001CPEMA
1 x sample mount – 0021CPEMAMM
1 x WE copper contact - 0022CCUMA
1 x chamber - 0041CPEMAMM
1 x pillar – 0031PSSMA
1 x plug
