RADWAG PS.R, PS.R.M Precision Balances

RADWAG PS.R, PS.R.M Precision Balances

SKU: WL-212-1003

  • £84800
  • Save £14900

RADWAG PS.R, PS.R.M Precision Balances

Buy RADWAG products from MSE Supplies at the best value.

SKU #

WL-212-1003

WL-212-0018

WL-212-0019

WL-212-0020

WL-212-0021

WL-212-0022

WL-212-0170

Model #

PS 200/2000.R2

PS 210.R2

PS 360.R2

PS 600.R2

PS 750.R2

PS 1000.R2

PS 2100.R2.M

Maximum Capacity (g)

200/2000

210

360

600

750

1000

2100

Readability (mg)

1/10

1

1

1

1

1

10



SKU #

WL-212-0173

WL-212-0134

WL-212-0135

WL-212-0132

WL-212-0133

WL-213-1002

Model #

PS 3500.R2.M

PS 4500.R2.M

PS 6100.R2.M

PS 8100.R2.M

PS 10100.R2.M

PS 200/2000.R1

Maximum Capacity (g)

3500

4500

6100

8100

10100

200/2000

Readability (mg)

10

10

10

10

10

1/10



SKU #

WL-213-0020

WL-213-0022

WL-213-0023

WL-213-0091

WL-213-0078

WL-213-0085

Model #

PS 360.R1

PS 750.R1

PS 1000.R1

PS 3500.R1.M

PS 4500.R1.M

PS 6100.R1.M

Maximum Capacity (g)

360

750

1000

3500

4500

6100

Readability (mg)

1

1

1

10

10

10



Communication interfaces

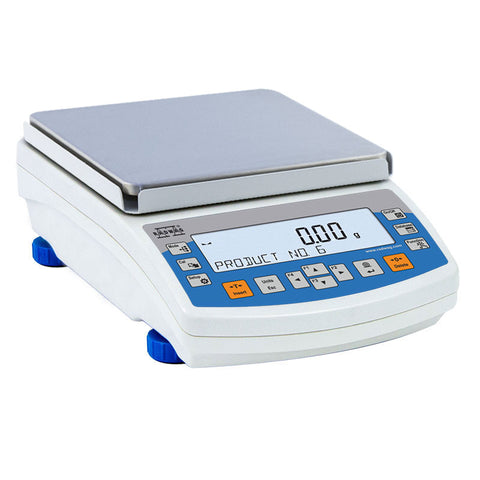

New PS.R2 balances, like previously designed PS series balances, have pans in two possible dimensions: 128x128 mm or 195x195 mm balances with a smaller pan have a draft shield. The balance precision and the measurement accuracy is assured by automatic internal adjustment, which takes into consideration temperature changes and time flow.

PS.R2 balances feature several communication interfaces: 2 x RS 232, type A USB, type B USB and optional Wireless Connection.

The balance may cooperate with computer by means of USB interface supposing a supplementary software has been installed (respective driver). The said driver may be downloaded from RADWAG website – SOFTWARE link or SUPPORT section.

The housing is made of plastic, and the pan is made of stainless steel.
The balances have a possibility to weigh products out of the pan (under-pan weighing) - the load hangs under the pan.

Databases in R Series Balances

The information system is based on 5 databases, which allows for several users to work with several products databases, and the registered weighing results can be subject to further analysis.

The data is registered in 5 databases:

  • Users (up to 10 users),
  • Products (up to 1000 products),
  • Weighments (up to 5000 weighments),
  • Tares (up to 100 tares),
  • ALIBI memory (up to 100 000 weighments).

Quick access to information

There is two directions data exchange within the system thanks to a quick USB interface. New balances allow to import and export databases using USB pen drives.

Direct access to functions and databases is possible from the level of keyboard.

  • Database - a direct access to databasis
  • Function - a direct access to the basic functions
  • F1 do F4 - programmable function and navigation keys on the menu

ALIBI memory

The used ALIBI memory is a data secure area  and allows to record up to 100 000 weighment records. It ensures security of constant data register in the long time period.

Datasheet

Model No.

PS 200/2000.R2

PS 210.R2

PS 360.R2

PS 600.R2

PS 750.R2

PS 1000.R2

Metrological parameters

Maximum capacity [Max]

200/2000 g

210 g

360 g

600 g

750 g

1000 g

Minimum load

20 mg

20 mg

20 mg

20 mg

20 mg

20 mg

Readability [d]

1/10 mg

1 mg

1 mg

1 mg

1 mg

1 mg

Verification unit [e]

10/100 mg

10 mg

10 mg

10 mg

10 mg

10 mg

Tare range

-2000 g

-210 g

-360 g

-600 g

-750 g

-1000 g

Standard repeatability [5% Max]

0.5/5 mg

0.5 mg

0.5 mg

0.5 mg

0.5 mg

0.5 mg

Standard repeatability [Max]

1/10 mg

1 mg

1 mg

1 mg

1.5 mg

1.5 mg

Standard minimum weight (USP)

1 g

1 g

1 g

1 g

1 g

1 g

Standard minimum weight (U=1%, k=2)

0.1 g

0.1 g

0.1 g

0.1 g

0.1 g

0.1 g

Linearity

±2/20 mg

±2 mg

±2 mg

±3 mg

±3 mg

±3 mg

Stabilization time

2/1.5 s

2 s

2 s

2 s

2 s

2 s

Adjustment

internal (automatic)

OIML Class

II

II

II

II

II

II

Physical parameters

Leveling system

Manual

Display

LCD (backlit)

Delivery components

Balance, weighing pan, weighing pan shield, grounding bumper ×1, bumper ×3, power supply.

Weighing pan dimensions

128×128 mm

Packaging dimensions

475×380×345 mm

Net weight

3.9 kg

3.7 kg

3.7 kg

3.9 kg

3.9 kg

3.92 kg

Gross weight

6 kg

5 kg

5 kg

5 kg

5 kg

6 kg

Construction

Protection class

-

-

IP 43

IP 43

IP 43

IP 43

Communication interface

Communication interface

2×RS232¹, USB-A, USB-B, Wi-Fi® (option)

Electrical parameters

Power supply

Adapter: 100 – 240V AC 50/60Hz 0.6A; 12V DC 1.2A

Balance: 12 – 15V DC 0.4A max

Power consumption

4 W

Environmental conditions

Operating temperature

+10 — +40 °C

Relative humidity

40% — 80%



Model No.

PS 2100.R2.M

PS 3500.R2.M

PS 4500.R2.M

PS 6100.R2.M

PS 8100.R2.M

PS 10100.R2.M

Metrological parameters

Maximum capacity [Max]

2100 g

3500 g

4500 g

6100 g

8100 g

10100 g

Minimum load

500 mg

500 mg

500 mg

500 mg

500 mg

-

Readability [d]

10 mg

10 mg

10 mg

10 mg

10 mg

10 mg

Verification unit [e]

100 mg

100 mg

100 mg

100 mg

100 mg

-

Tare range

-2100 g

-3500 g

-4500 g

-6100 g

-8100 g

-10100 g

Standard repeatability [5% Max]

5 mg

5 mg

5 mg

5 mg

5 mg

8 mg

Standard repeatability [Max]

8 mg

8 mg

8 mg

8 mg

10 mg

12 mg

Standard minimum weight (USP)

10 g

10 g

10 g

10 g

10 g

10 g

Standard minimum weight (U=1%, k=2)

1 g

1 g

1 g

1 g

1 g

1 g

Linearity

±20 mg

±20 mg

±20 mg

±20 mg

±20 mg

±20 mg

Stabilization time

1.5 s

1.5 s

1.5 s

1.5 s

1.5 s

1.5 s

Adjustment

internal (automatic)

OIML Class

II

II

II

II

II

-

Physical parameters

Leveling system

Manual

Display

LCD (backlit)

Delivery components

Balance, weighing pan, weighing pan shield, power supply

Weighing pan dimensions

195×195 mm
Device dimensions

-

-

333x206x107 mm

Packaging dimensions

475×380×345 mm

Net weight

4.3 kg

4.33 kg

4.26 kg

4.33 kg

4.5 kg

4.5 kg

Gross weight

5.5 kg

5.5 kg

5.5 kg

6 kg

7.5 kg

5.5 kg

Construction

Protection class

IP 43

IP 43

IP 43

IP 43

IP 43

IP 43

Communication interface

Communication interface

2×RS232¹, USB-A, USB-B, Wi-Fi® (option)

Electrical parameters

Power supply

Adapter: 100 – 240V AC 50/60Hz 0.6A; 12V DC 1.2A

Balance: 12 – 15V DC 0.4A max

Power consumption

4 W

Environmental conditions

Operating temperature

+10 — +40 °C

Storage temperature

-

-

-20 — +50 °C

Relative humidity

40% — 80%



Model No.

PS 200/2000.R1

PS 360.R1

PS 750.R1

PS 1000.R1

PS 3500.R1.M

PS 4500.R1.M

PS 6100.R1.M

Metrological parameters

Maximum capacity [Max]

200/2000 g

360 g

750 g

1000 g

3500 g

4500 g

6100 g

Minimum load

20 mg

20 mg

20 mg

20 mg

500 mg

500 mg

500 mg

Readability [d]

1/10 mg

1 mg

1 mg

1 mg

10 mg

10 mg

10 mg

Tare range

-2000 g

-360 g

-750 g

-1000 g

-3500 g

-4500 g

-6100 g

Repeatability [5% Max]

0.5/5 mg

0.5 mg

0.5 mg

0.5 mg

5 mg

5 mg

5 mg

Repeatability [Max]

1/10 mg

1 mg

1.5 mg

1.5 mg

8 mg

8 mg

8 mg

Linearity

±2/20 mg

±2 mg

±3 mg

±3 mg

±20 mg

±20 mg

±20 mg

Stabilization time

2/1.5 s

2 s

2 s

2 s

1.5 s

1.5 s

1.5 s

Adjustment

 External

Physical parameters

Leveling system

Manual

Display

LCD (backlit)

Delivery components

Balance, weighing pan, weighing pan shield, grounding bumper ×1, bumper ×3, power supply.

Balance, weighing pan, weighing pan shield, power supply

Weighing pan dimensions

128×128 mm

195×195 mm

Device dimensions

-

-

-

-

-

333x206x107 mm

Packaging dimensions

475×380×345 mm

Net weight

3.2 kg

3.2 kg

3.2 kg

3.2 kg

3.6 kg

4.5 kg

4.5 kg

Gross weight

5.5 kg

5 kg

4.5 kg

4.5 kg

5.1 kg

5.5 kg

5.5 kg

Construction

Protection class

IP 43

IP 43

IP 43

IP 43

IP 43

IP 43

IP 43

Communication interface

Communication interface

 2×RS232¹, USB-A, USB-B, Wi-Fi® (option)

Electrical parameters

Power supply

Adapter: 100 – 240V AC 50/60Hz 0.6A; 12V DC 1.2A

Balance: 12 – 15V DC 0.4A max

Power consumption

4 W

Environmental conditions

Operating temperature

+10 — +40 °C

Storage temperature

-

-

-

-

-

-20 — +50 °C

Relative humidity

40% — 80%



*The power supply can be connected to the socket on the back of the balance housing or to the terminal.
