SARS-CoV-2 Spike Protein S1 RBD ELISA Kit
SKU: E-EL-E605
SARS-CoV-2 Spike Protein S1 RBD ELISA Kit
| Detection Range | 0.39-25 ng/mL |
| Sensitivity | 0.09 ng/mL |
Product Details
Properties
| Assay Type | Sandwich-ELISA |
| Format | 96T |
| Assay time | 3.5h |
| Sample type | serum, plasma and other biological fluids |
| Sample volume | 100μL |
| Storage | 2-8℃ |
| Interpretation | Qualitative |
| Application | This ELISA kit applies to the in vitro Qualitative determination of S1 RBD in serum or plasma. |
| Synonyms | Spike protein S1, S1 subunit, Receptor binding domain, S1RBD, RBD domain |
Test Principle

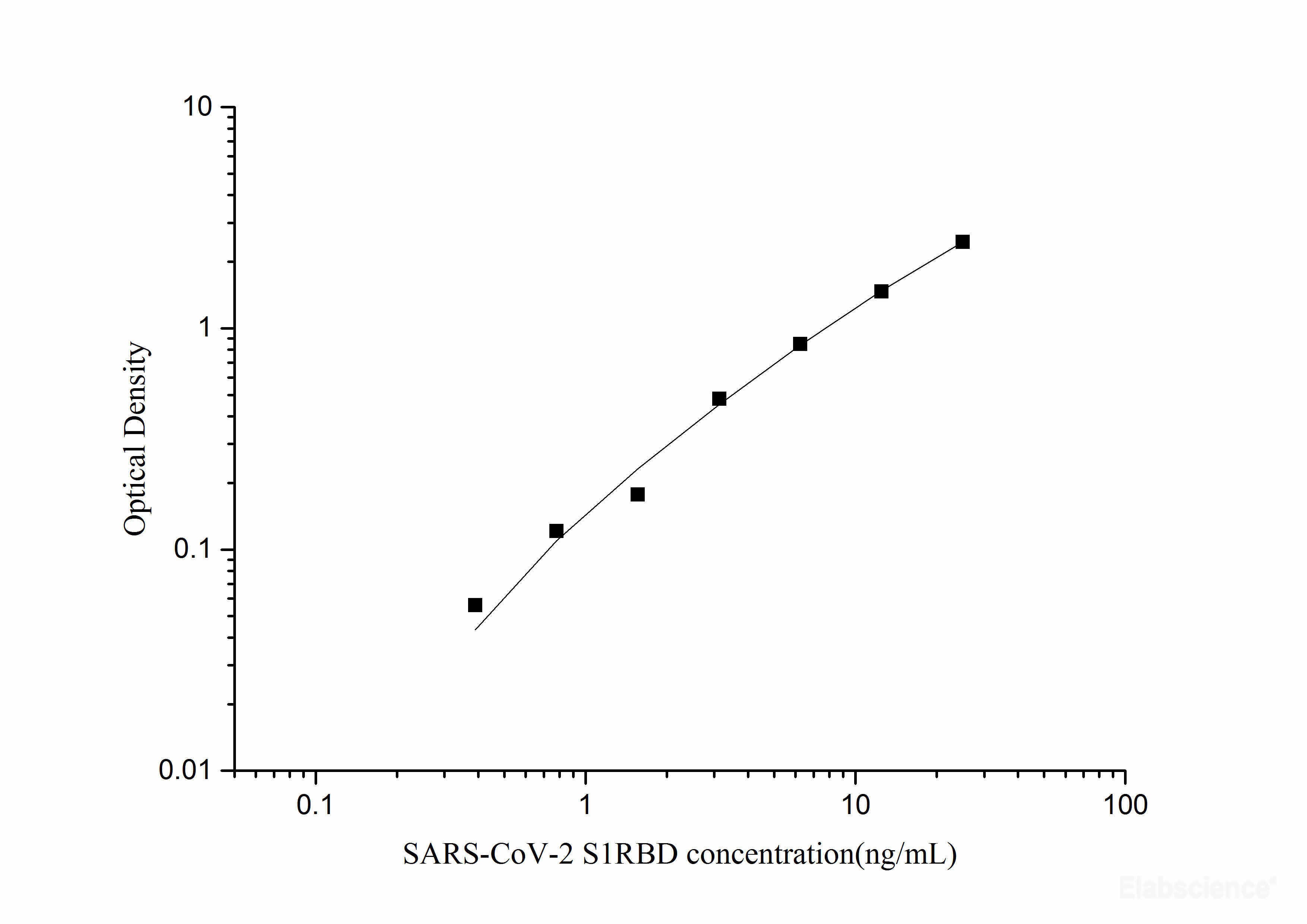

This ELISA kit uses the Sandwich-ELISA principle. The micro ELISA plate provided in this kit has been pre-coated with an antibody specific to SARS-CoV-2 S1RBD. Samples (or Standards) and biotinylated detection antibody specific for SARS-CoV-2 S1RBD are added to the micro ELISA plate wells. SARS-CoV-2 S1RBD would combine with the specific antibody. Then Avidin-Horseradish Peroxidase (HRP) conjugate are added successively to each micro plate well and incubated. Free components are washed away. The substrate solution is added to each well. Only those wells that contain SARS-CoV-2 S1RBD, biotinylated detection antibody and Avidin-HRP conjugate will appear blue in color. The enzyme-substrate reaction is terminated by the addition of stop solution and the color turns yellow. The optical density (OD) is measured spectrophotometrically at a wavelength of 450 ± 2 nm. The OD value is proportional to the concentration of SARS-CoV-2 S1RBD. You can calculate the concentration of SARS-CoV-2 S1RBD in the samples by comparing the OD of the samples to the standard curve.

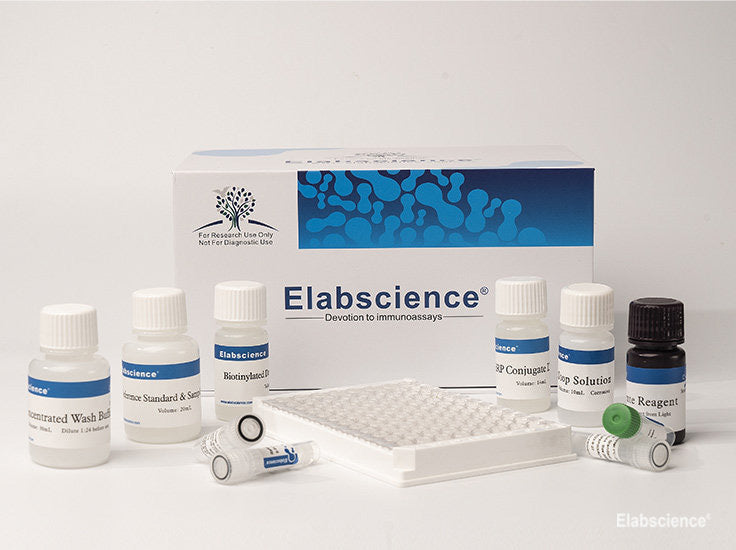

Kit Components and Storage
An unopened kit can be stored at 2-8℃ for 1 month. If the kit is not used within 1 month, store the items separately according to the following conditions once the kit is received.
| Item | Specifications | Storage |
| Micro ELISA Plate(Dismountable) | 96T: 8 wells ×12 strips | -20℃, 6 months |
| 48T: 8 wells ×6 strips | ||
| Reference Standard | 96T: 2 vials | |
| 48T: 1 vial | ||
| Concentrated Biotinylated Detection Ab (100×) | 96T: 1 vial, 120 μL | |
| 48T: 1 vial, 60 μL | ||
| Concentrated HRP Conjugate (100×) | 96T: 1 vial, 120 μL | -20℃(Protect from light), 6 months |
| 48T: 1 vial, 60 μL | ||
| Reference Standard & Sample Diluent | 1 vial, 20 mL | 2-8°C, 6 months |
| Biotinylated Detection Ab Diluent | 1 vial, 14 mL | |
| HRP Conjugate Diluent | 1 vial, 14 mL | |
| Concentrated Wash Buffer (25×) | 1 vial, 30 mL | |
| Substrate Reagent | 1 vial, 10 mL | 2-8℃ (Protect from light) |
| Stop Solution | 1 vial, 10 mL | 2-8℃ |
| Plate Sealer | 5 pieces | |
| Manual | 1 copy | |
| Certificate of Analysis | 1 copy |
Technical Data:
Precision
Intra-assay Precision (Precision within an assay): 3 samples with low, mid range and
high level SARS-CoV-2 S1RBD were tested 20 times on one plate, respectively.
Inter-assay Precision (Precision between assays): 3 samples with low, mid range and
high level SARS-CoV-2 S1RBD were tested on 3 different plates, 20 replicates in each
plate.
| Intra-assay Precision | Inter-assay Precision | |||||
|---|---|---|---|---|---|---|
| Sample | 1 | 2 | 3 | 1 | 2 | 3 |
| n | 20 | 20 | 20 | 20 | 20 | 20 |
| Mean (ng/mL) | 1.32 | 3.84 | 11.49 | 1.35 | 4.09 | 10.94 |
| Standard deviation | 0.09 | 0.22 | 0.45 | 0.09 | 0.18 | 0.53 |
| CV (%) | 6.82 | 5.73 | 3.92 | 6.67 | 4.4 | 4.84 |
Recovery
The recovery of SARS-CoV-2 S1RBD spiked at three different levels in samples
throughout the range of the assay was evaluated in various matrices.
| Sample Type | Range (%) | Average Recovery (%) |
|---|---|---|
| Serum(n=5) | 88-100 | 94 |
| EDTA plasma (n=5) | 89-101 | 95 |
Assay Procedures
 |
1. Add 100μL standard or sample to the wells. Incubate for 90 min at 37°C |
 |
2. Discard the liquid, immediately add 100μL Biotinylated Detection Ab working solution to each well. Incubate for 60 min at 37°C |
 |
3. Aspirate and wash the plate for 3 times |
 |
4. Add 100μL HRP conjugate working solution. Incubate for 30 min at 37°C. Aspirate and wash the plate for 5 times |
 |
5. Add 90μL Substrate Reagent. Incubate for 15 min at 37°C |
 |
6. Add 50μL Stop Solution |
 |
7. Read the plate at 450nm immediately. Calculation of the results |
