Leybold Trivac L Two-Stage Rotary Vane Vacuum Pump
SKU: 1019040V01
Buy Leybold vacuum pumps from MSE Supplies at the best value.

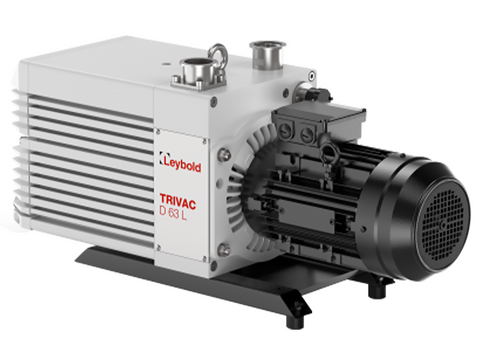

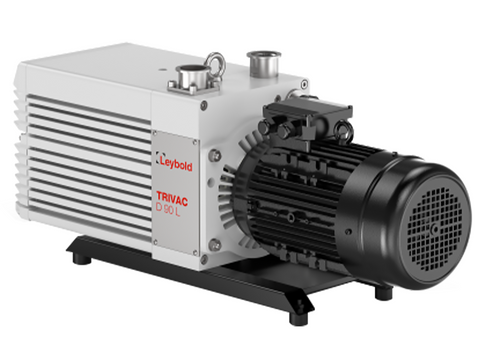

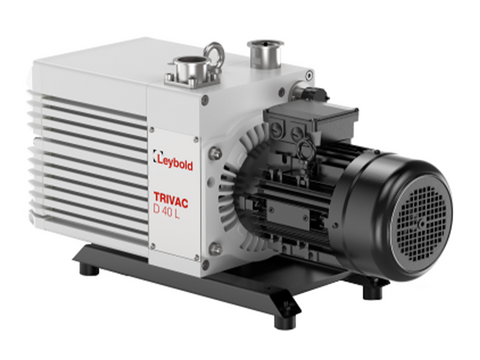

Leybold TRIVAC L pumps are the new generation in Leybold 2-stage rotary vane vacuum pump portfolio, balancing the performance, reliability and total cost of ownership during the whole product life cycle. These air-cooled vacuum pumps are designed to meet the diffused industrial application requirements which need stable performance and easy operation.
MSE Supplies is an authorized distributor of Leybold vacuum pumps.
| TRIVAC L | D40L | D63L | D90L |
| Nominal pumping speed 50 Hz (m3/h) | 49 | 67 | 92 |
| Nominal pumping speed 60 Hz (m3/h) | 59 | 80 | 110 |
| Pumping speed 50 Hz (m3/h) | 42 | 60 | 79 |
| Pumping speed 60 Hz (m3/h) | 50 | 72 | 95 |
| Without gas ballast total (mbar / Torr) | 3x10-3 / 2.2x10-3 | ||
| With gas ballast total (mbar / Torr) | 2x10-2 / 1.5x10-2 | ||
| Water vapour tolerance (mbar) | 35 | 30 | 25 |
| Water vapour capacity 60Hz (g/h) | 1308 | 1601 | 1757 |
| Connection flanges (DN) | 40KF | ||
| Ambient temperature (°C) | 10-40 | ||
| Noise level without / with gas ballast dB (A) | 58/60 | ||
| Oil capacity (L) | 3.1-4.1 | 3.3-4.4 | 3.6-4.8 |
| Motor power (kW 60 Hz) | 1.3 | 1.8 | 2.6 |
| Voltage powder supply | Three phase, 230/460V | ||
| Weight (kg / lbs.) | 84/184.8 | 84/184.8 | 101/222.2 |
