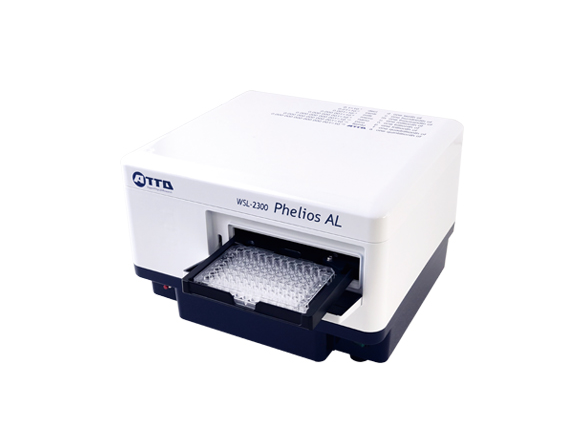

ATTO WSL-2300N Phelios AL-Trace Samples Plate Reader

ATTO WSL-2300N Phelios AL-Trace Samples Plate Reader

SKU: WSL-2300N

  • £23,30700
  • Save £2,59000


ATTO WSL-2300N Phelios AL-Trace Samples Plate Reader

Buy ATTO products from MSE Supplies at the best Value.

The WSL-2300 Phelios AL is a plate reader capable of absorbance measurement (ABS), luminescence measurement (LUMI) and trace measurement (NANO).

It uses a monochromator and can measure a wide range of 200nm~999nm. Luminescence measurement is capable of measuring 400nm~700nm.

The measuring vessel is a microplate (6/12/24/48/96/384) and the optional "Nano Volume Plate" for trace measurement, which can measure trace samples (DNA, RNA, protein) of 2 μL ~.

The measurement results can be analyzed and output to an easy-to-manage excel format.

Features

  • Absorbance measurements: absorbance endpoint measurements, kinetics measurements, spectral measurements, area scans
  • Luminescence measurement: Luminescence endpoint measurement, kinetics measurement
  • Trace measurement: absorbance endpoint measurement, spectral measurement
  • Measurement wavelength 200 ~ 999nm
  • Creating a Calibration Curve
  • Endpoint Measurements
  • Kinetics Measurements
  • Spectral measurement
  • Well Area Scan Measurement
  • Up to 6 wavelengths can be measured

MSE Supplies is an authorized distributor of ATTO products.

Technical Data:

Model and name

 WSL-2300N Phelios AL

Measurement type

 Absorbance (ABS) and Luminescence

Measurement method

Absorbance measurement: Photodiode

Luminescence measurement: Photomultiplier tube (PMT)

Measurement mode

 Absorbance measurement: (1) endpoint (2) kinetics (3) spectrum (4) area scan
Luminescence measurement: (1) endpoint (2) kinetics
trace measurement: (1) endpoint (3) spectrum

Detection Sensitivity

Absorbance measurement: 0 ~ 4.0 O.D.

Luminescence measurement: 10-18mol ATP (dynamic range > 8 digits)

Measuring vessel 1

 Microplates: 6 / 12 / 24 / 48 / 96 / 384 wells

Measuring vessel 2

 Nano Volume Plate(Optional): 3×8 (24 samples)

Detector 1

 Photodiode / 200~999nm

Detector 2

 Photomultiplier tube (PMT) / 300~700nm (maximum 420nm)

Wavelength separation method

 Monochromator (1nm step)

Absorbance measurement light source

 xenon

Stirring function

Yes.

0~180 seconds (2 speeds)

Dedicated applications

 Measurement condition setting, measurement, data storage, data analysis

Supported OS

 Windows 10

External connection terminals

 USB × 1

Dimensions(mm)

 335(W)×305(D)×232(H)

Weight(Kg)

 7.0kg (AC adapter 0.5kg)

Power supply and power consumption

 DC24V, 40W

AC Adapter

Input: AC100~240V 50/60Hz 140VA

Output: DC24V 65W

Standard Components

 WSL-2300 Phelios AL main unit USB
cable (A-B type), AC adapter + AC cable, support plate for luminescence measurement, Nano plate,
USB memory (dedicated application), instruction manual
