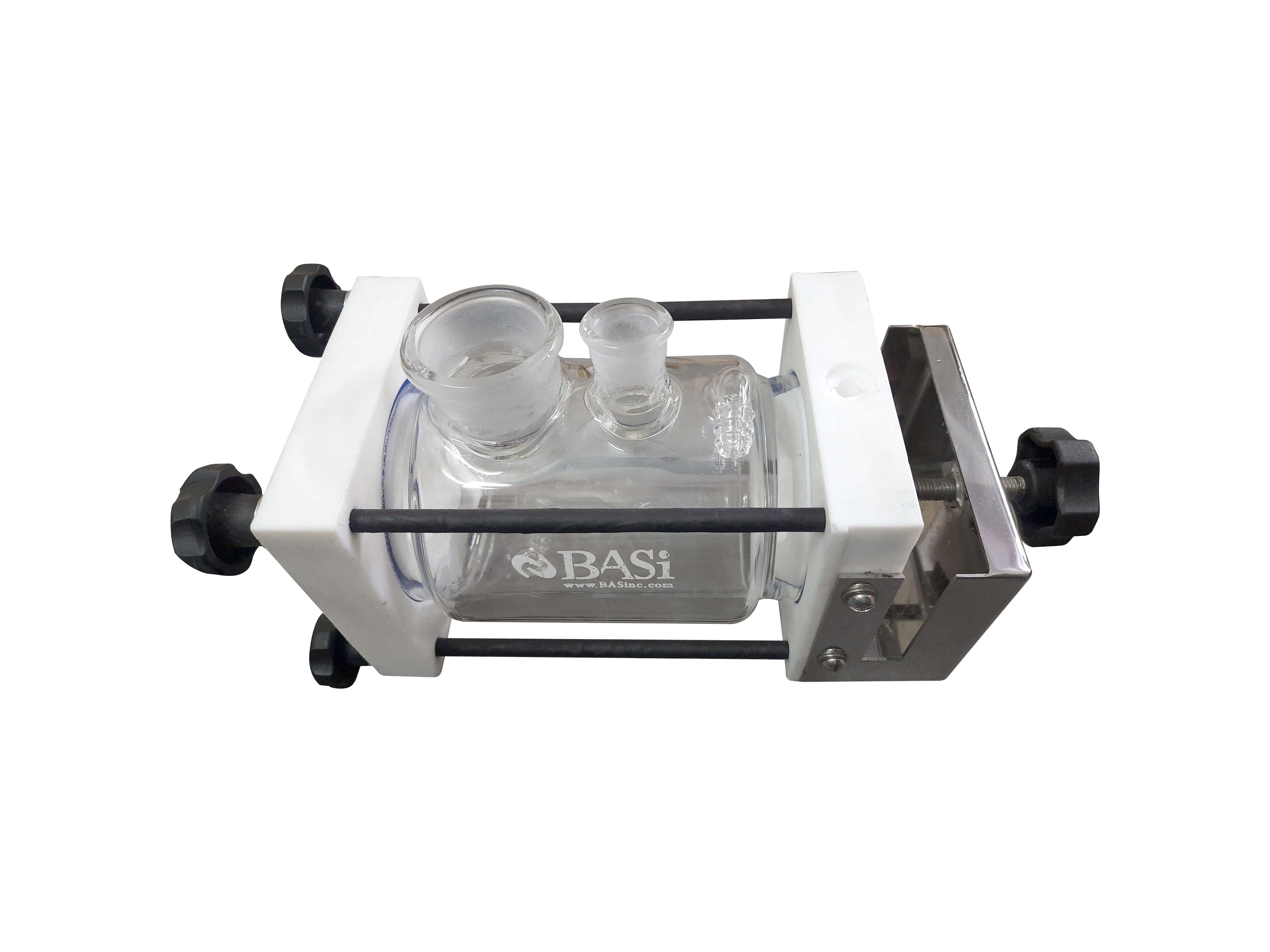

IP-U-CCG-FS250: 250 ml Corrosion Cell for Flat Samples

The IP-U-CCG-FS250 is a fully equipped, horizontally mounted corrosion cell set-up that can be used with any Potentiostat / Galvanostat / Impedance Analyzer in the world. Rather than a dedicated sample holder, the sample coupon can be easily mounted or replaced onto the cell in less than 10 seconds. This set-up heavily suits the corrosion scientists, analysts and researchers that have a high through-put requirement for conducting analysis on coupons with square, rectangular, circular, or any other shapes. The construction is typically gas-tight, has dedicated ports for electrode insert, and is also available in a jacketed version for thermal control. For more customizations, we can offer the entire set-up in acrylic material in case of very harsh or rough environments.

Available Volumes: 250 mL

Customization Options & Cell Types: 1) Glass type with Teflon support; 2) Jacketed Glass type with Teflon support and 3) A Complete Acrylic Cell

Coupon Dimensions: The available exposed surface area is 1 cm2. Minimum requirements: Circular (16 mm diameter) or Square (4 mm x 4 mm). Thickness requirements: 0.5mm to 8 mm.

Wet Parts: Glass & silicon and thus, no limitations due to pH of electrolyte.

Includes: A 250 mL glass reservoir, 6 mm diameter graphite rod counter electrode, a stainless-steel SS430 coupon for sample analysis, lugging capillary and all the other accessories for plug n play analysis.

Related applications:

• All types of EC based corrosion analysis for square, rectangular & circular coupons
• High through-put analysis that require fast and easy assembly / disassembly process
• Corrosion measurements with thermal control between 3 deg. C to 90 deg. C
• Completely acrylic version available for highly corrosive environments
• Corrosion measurements in organic solutions
