Benchtop High-Speed Spin Coater ( 10,000 rpm ) with Vacuum Pressure Display Gauge and Vacuum Pump &3 Vacuum Chucks
SKU : BR0376
Quantity
Price
$3888.00
Total Price: $3888.00
Contact Information
Benchtop High-Speed Spin Coater ( 10,000 rpm ) with Vacuum Pressure Display Gauge and Vacuum Pump &3 Vacuum Chucks
SKU: BR0376
Product details:

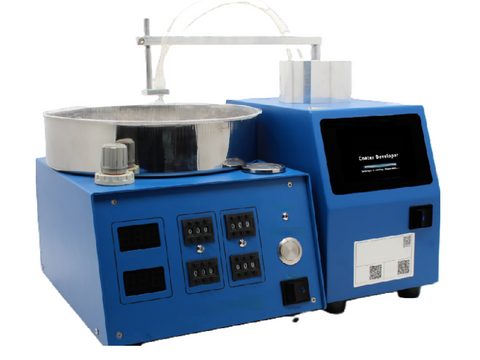

MSE Supplies offers a benchtop high-speed and easy-to-use spin coater (BR0376), which is designed for precise and uniform deposition of thin films and coatings. Its rugged, vibration-free and portable design makes it a versatile tool for any high-quality research facility. A two-stage spin process allows dispensing at low speed and homogenizing the coating at high speed. It is widely used by our customer to deposit metal oxide thin films, polymer coatings and metal organic thin films.

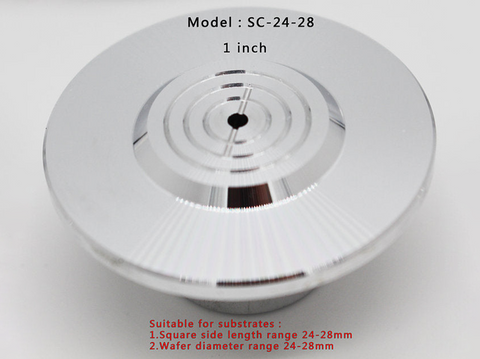

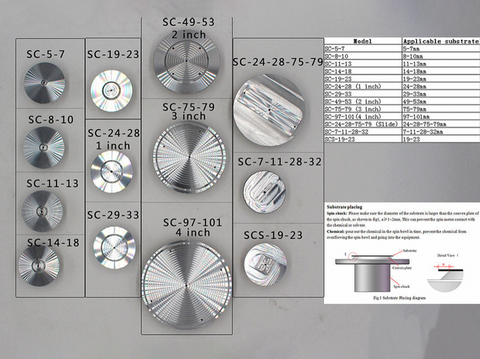

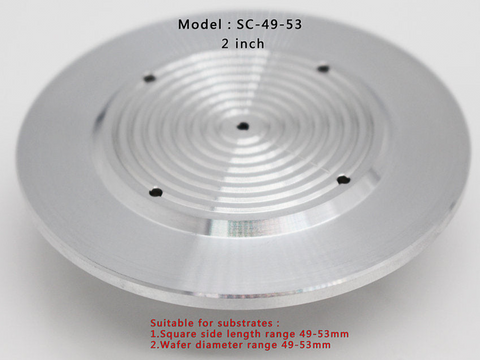

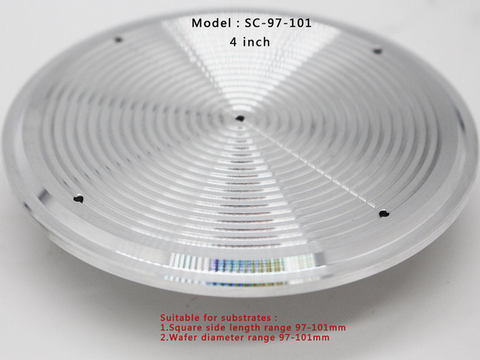

Three standard vacuum chucks (1", 2" and 4") are complimentary offered by MSE Supplies. Please contact us if you need other sized vacuum chucks.
Maximum support is 4 inches, maximum speed is 10,000RPM, with vacuum pressure display gauge
The product figure is for reference only. The actual product may look different based on the product configuration.
Specifications:
| SKU# |
BR0376 for 110V pump BR0376B for 220V pump |
| Power | AC 100-240V, single phase |
| Substrate Size | 5-120mm |
| Spin Speed | 50-10000rpm |
| Spin Coating Uniformity | ±1% |
| Pumping Speed | ≥60L/min |
| Two Spin Speed Stage |
1000-10000rpm High speed 50-1000rpm Low speed |
| Set Time Range | 0-999s |
| Motor Speed Stability | ±1rpm |
| Dimensions | 210x220x160mm |
| Weight | 14.5kg including the pump |
| Warranty | Limited 1 year warranty. Lifetime technical support. |
