BrandTech MZ 2C NT +AK+M+D Chemistry Vacuum System
SKU: BT20732703
BrandTech MZ 2C NT +AK+M+D Chemistry Vacuum System
Buy BrandTech Products from MSE Supplies at the best value.

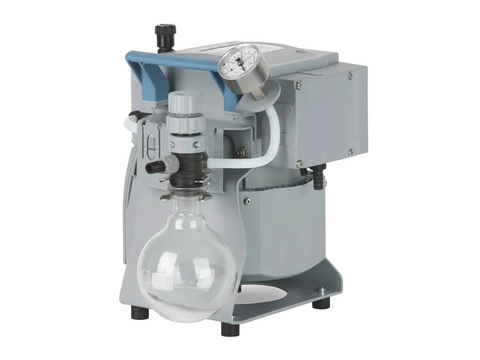

Chemistry vacuum system in action
This chemistry vacuum system has a wide range of applications like evacuation, evaporation and pumping of gases and vapors in chemical, biological and pharmaceutical laboratories where there are no requirements for condensation of solvent vapors at the outlet. The manual flow control valve regulates the effective pumping speed at the vacuum connection, the vacuum manometer offers an analog vacuum display. This system is well proven for filtration. The separator at the inlet (AK), made of glass with a protective coating, retains particles and liquid droplets.
- outstanding chemical resistance and superior vapor tolerance
- high performance even at low vacuum levels
- optimized vacuum even with gas ballast for condensate purge
- whisper quiet and very low vibration
- manual vacuum control, analog vacuum display
Technical data and graphs
| Max. pumping speed 50 Hz | 2 m3/h |
| Max. pumping speed 60 Hz | 1.4 cfm |
| Ultimate vacuum | 7 mbar / 5 torr |
| Ultimate vacuum with gas ballast | 12 mbar / 9 torr |
| Number of heads | 2 |
| Number of stages | 2 |
| Vacuum controller | Manometer |
| Lower ambient temperature (operation) | 10 °C |
| Upper ambient temperature (operation) | 40 °C |
| Lower ambient temperature (storage) | -10 °C |
| Upper ambient temperature (storage) | 60 °C |
| Max. back pressure (abs.) | 1.1 bar |
| Inlet connection | Hose nozzle DN 8-10 mm |
| Outlet connection | Hose nozzle DN 8-10 mm |
| Rated motor power | 0.18 kW |
| Rated motor speed at 50/60 Hz | 1500/1800 min-1 |
| Protection class IEC 60529 | IP 40 |

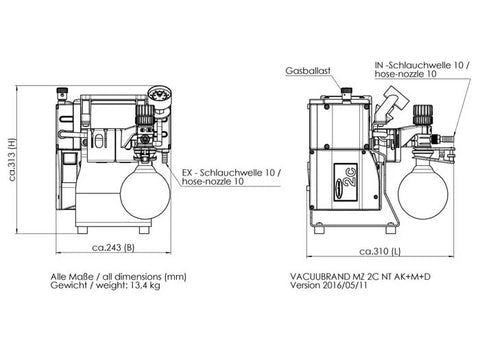

| Dimension L in mm | 310 mm |
| Dimension B in mm | 243 mm |
| Dimension H in mm | 313 mm |
| Weight | 13.4 kg |
| Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) | 45 dBA |
| NRTL certification | Yes |
| Items supplied | Pumping unit completely mounted, ready for use, with manual. |
| Rated mains voltage range 1 | 100-115 V |
| Rated mains voltage range 2 | 120 V |
| Mains frequency 1 | 50-60 Hz |
| Mains frequency 2 | 60 Hz |
