MSE PRO Double Convex Lenses
SKU: CS0015

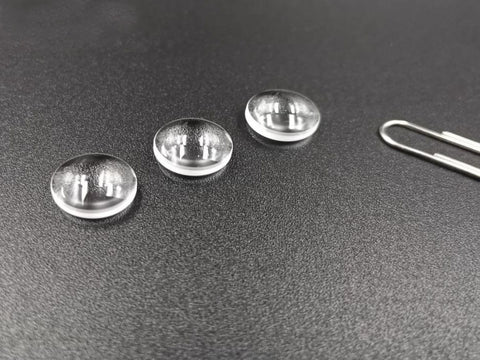

MSE PRO™ Double Convex Lenses
MSE supplies offers various Double Convex Lenses with different materials, dimensions, surface qualify, etc.
Double Convex Lenses, which are also called Biconvex Lenses, are lenses with symmetric convex curvature on both size. They are used to converge parallel lights into a single point. It is widely used in optical field such as laser, projection, etc. to reduce the focal length of the system.
MSE Supplies can offer a variant of optical elements, with different material, size, surface quality and coating. Please contact us for customization or bulk orders.
Technical Data:
| Parameters | Value |
| Material |
|
| Diameter (mm) |
0.5-500 |
| Diameter Tolerance (mm) | +0/-0.01~+0/-0.1 |
| Thickness Tolerance (mm) | ±0.01~±0.1 |
| Focal Length Tolerance (%) | ±1 |
| Irregularity (P-V) @ 632.8nm | λ/10~λ/2@632.8 |
| Surface Quality | 10/5~60/40 |
| Centration | <30”~3' |
| Clear Aperture (%) | >90 |
| Bevel | Protective bevel as needed |
| Coating | Uncoated, AR, BBAR |
