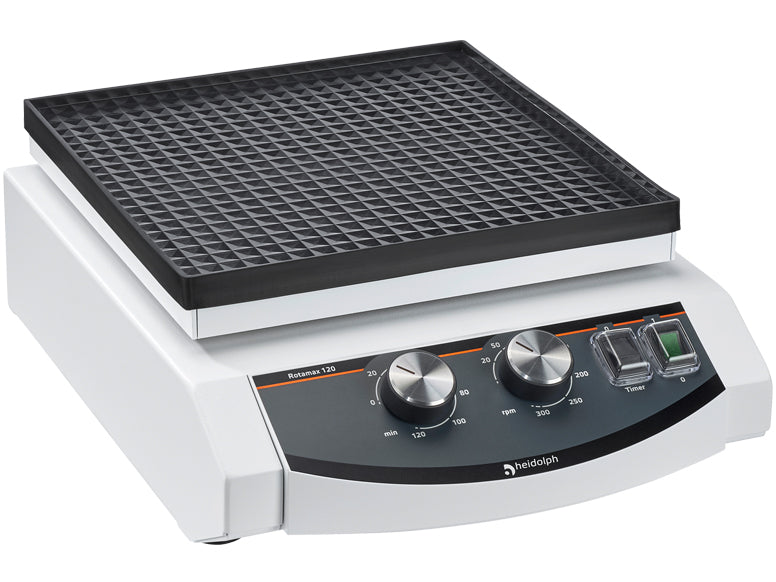

Heidolph Platform Shaker- Orbital Rotamax 120
SKU: 036130160
Heidolph Platform Shaker- Orbital Rotamax 120
The compact one with a maximum loading capacity of 2 kg
Space-saving and with a load weight of up to 2 kg, this shaker can perfectly master all applications.
The variably adjustable speed control (20-300 rpm) and the orbit of 20 mm guarantee homogeneous distribution. Your applications can be carried out in continuous operation or by means of a timer (max. 120 minutes).
Product Parameters
| Overheat protection | Self-resetting |
| Permissible ambient conditions | 5 - 31 °C at 80 % rel. humidity 32 - 40 °C decreasing linearly up to max. 50 % rel. humidity |
| Weight | 5.5 kg |
| Protection class (EN 60529) | IP 30 |
| Timer | Yes (max. 120 min) |
| Rotation speed range | 20 - 300 rpm |
| Power input | 33 |
| Dimensions (w/d/h) | 245 x 310 x 125 mm |
| Max. Load | 2 kg |
| Operating Mode | Timer or continous |
| Rotation speed setting | Electronic control |
| Orbit / Stroke | 20 mm |
| Platform size | 220 x 220 mm |
| Accessories included | Non-skid rubber mat |
| Angle | - |
| Motion | Orbital |
| Ambient temperature range (operation) | - |
| Ambient temperature range (storage) | - |
| Interfaces | - |
| Usable area | - |
| Installation altitude | - |
