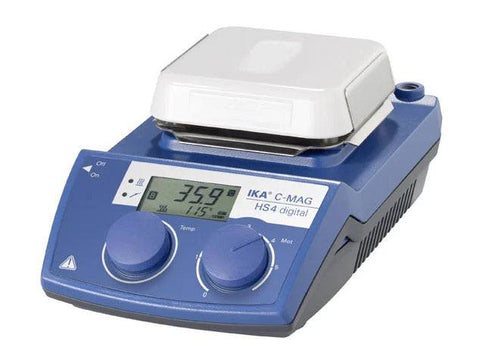

IKA C-MAG HS 4 Digital Magnetic Stirrers (1500rpm, 500°C)

SKU: 0004240201

  • £67500
  • Save £3600

IKA C-MAG HS 4 Digital Magnetic Stirrers (1500rpm, 500°C)

Buy IKA products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of IKA.

Product Details

Item number: 0004240201

Magnetic stirrer with heating and ceramic heating plate which offers excellent chemical resistance.

  • Powerful motor for stirring quantities of up to 5 L (H2O)
  • Simultaneous digital display of target and actual temperatures via LCD display
  • Directly connection for a PT 1000 temperature sensor enable a precise temperature control (included in delivery)
  • Control accuracy in medium +/- 0,5 K (in combination with PT 1000)
  • Display of actual temperature value in medium with 0,1 K resolution when using PT 1000 temperature sensor
  • 3 operating modes to choose (standard, safe, adjustment protection)
  • Fixed safety circuit of 550 °C
  • Hot Top indicator >> hot surface warning to prevent burns!
  • Digital error code display
  • Elevated control panel for protection against leaking liquids

Scope of delivery

  • C-MAG HS 4 digital
  • PT 1000.60 Temperature sensor, stainless steel
  • IKAFLON® 20 Magnetic stirring bar
  • IKAFLON® 30 Magnetic stirring bar
  • IKAFLON® 40 Magnetic stirring bar

            About IKA

            Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.

            Technical Data of IKA C-MAG HS 4 Digital Magnetic Stirrers (1500rpm, 500°C)

            Number of stirring positions 1
            Stirring quantity max. per stirring position (H2O) 5 L
            Motor rating output 1.5 W
            Direction of rotation left
            Speed adjustment scale 0 - 6
            Speed range 100 - 1500 rpm
            Stirring bar length max. 30 mm
            Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) +1 K
            Heat output 250 W
            Temperature display set-value LCD
            Temperature display actual-value LCD
            Heating temperature range 50 - 500 °C
            Heat control stepless
            Heating rate heating plate 2.5 K/min
            Temperature setting resolution of heating plate 5 K
            Connection for ext. temperature sensor PT1000
            Fixed safety circuit 550 °C
            Set-up plate material ceramic
            Set-up plate dimensions 100 x 100 mm
            Dimensions (W x H x D) 150 x 105 x 260 mm
            Weight 3.566 kg
            Permissible ambient temperature 5 - 40 °C
            Permissible relative humidity 80 %
            Protection class according to DIN EN 60529 IP 21
            Voltage 115 V
            Frequency 50/60 Hz
            Power input 270 W
