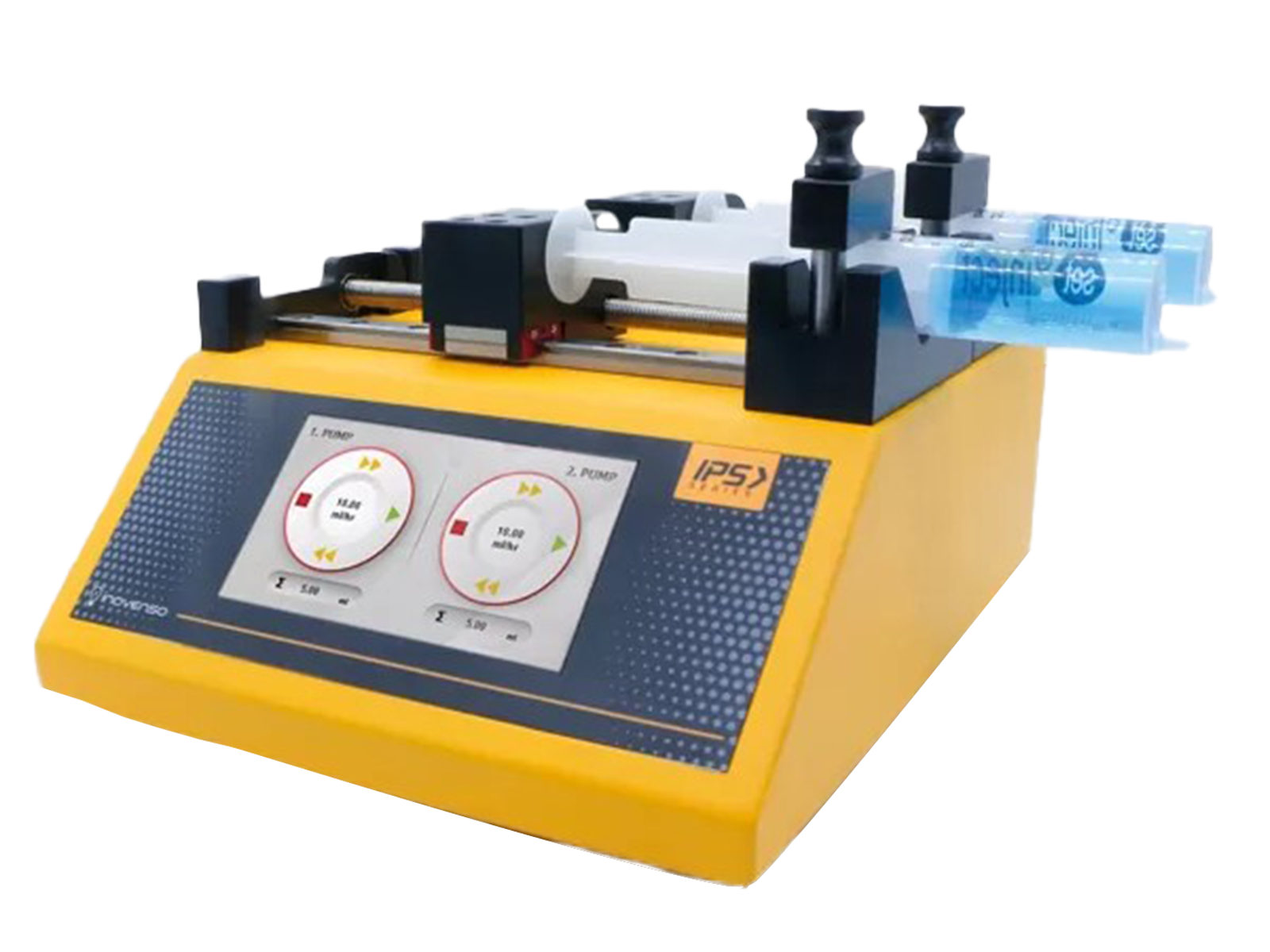

Inovenso IPS-14RS Independent Double Channel Syringe Pump

Inovenso IPS-14RS Independent Double Channel Syringe Pump

SKU: INVSIPS14RS

  • £1,16900
  • Save £13300

Inovenso IPS-14RS Independent Double Channel Syringe Pump

Buy Inovenso IPS syringe pump from MSE Supplies at the best value.

Overview

The IPS-14RS Syringe Pump is a sophisticated dual-channel fluid handling system designed to meet the exacting demands of modern laboratories and industrial settings. Offering precise control and advanced features, the IPS-14RS enables efficient and accurate fluid delivery for a variety of applications.

Key Features

  • Independent Syringe Channels: Featuring two independent syringe channels, the IPS-14RS allows for simultaneous operation of different fluids or independent control over each channel. This capability enhances flexibility and efficiency in fluid handling tasks.
  • Wide Syringe Compatibility: Compatible with glass, plastic, and steel syringes, the IPS-14RS accommodates syringes ranging from Hamilton 0.5 μl (ID: 0.103mm) to Monoject 140 ml (ID: 38mm). This versatility enables users to handle various volumes with ease.
  • Precise Flow Control: The IPS-14RS offers precise control over flow rates, with a range from 17.89 picoliters per minute to 121.51 milliliters per minute. Equipped with a stepper motor and microcontroller featuring Microstep Drive technology, it ensures accurate and consistent fluid delivery.
  • Intuitive Interface: With a 4.3-inch Resistive Touch TFT LCD screen and user-friendly microcontroller software, the IPS-14RS provides an intuitive interface for easy programming and monitoring. Users can adjust flow rates and other parameters effortlessly, enhancing productivity.
  • Adaptive Pumping: Users can adjust flow rates even during the pumping process, allowing for fine-tuning of parameters for optimal performance. This adaptability ensures precise fluid handling for a wide range of applications.

Additional Features

  • 5 Steps Operation Mode: Allows programming of up to 5 different steps for precise fluid handling.
  • Saving and Recalling Recipes: Users can save and recall up to 5 recipes for convenient operation.
  • Repeating Cycles: Capable of repeating recipes up to 50 cycles, enhancing efficiency in repetitive tasks.

Technical Specifications

Syringes
Capacity 2 Interdependent
Type Glass, plastic, steel
Min Size Hamilton 0.5 µl (ID:0.103mm)
Max Size Monoject 140 ml (ID:38mm)
Flow Rate
Min 17.89 pl/min (Hamilton 0.5 µl)
Max 121.51 ml/min (140 ml Monoject Syringe)
Motor Type Stepper Motor
Motor Drive Controller Microcontroller with Microstep Drive
Step Resolution (Travel/Microstep) 357 nm/µstep
Step Rate
Min 10 sec/µstep
Max 200 µsec/µstep
Min 2.14 µm/min
Max 107.14 µm/min
Linear Speed Rate (Pusher Travel Rate)
Linear Force 20 kg for each syringe
Connectors Wi-fi (optional)
Recipe Save-Recall Yes
Power Supply 12 VDC 1A (110-240 VAC adapter included)
Dimensions W:211 L:257 H:137 mm
Weight 3.6 kg
Environmental Specifications
Operating Temperature Between -10 and 50 (°C)
Storage Temperature Between -30 and 85 (°C)
Operating Humidity RH 10% - RH 90% (not condensed)
Storage Humidity RH 10% - RH 90% (not condensed)

MSE Supplies offers a variant of Syringe Pump. Please contact us for more information.
