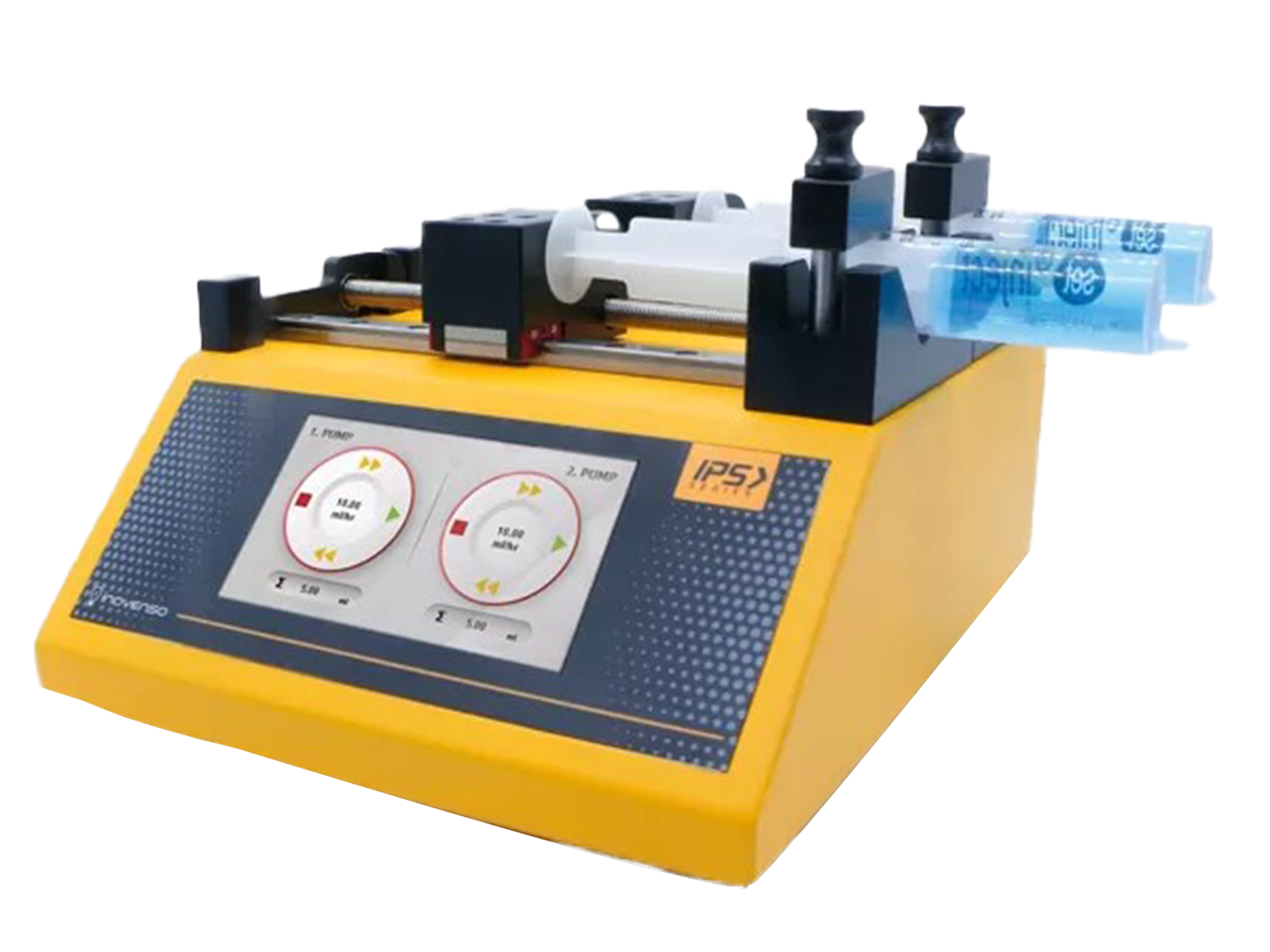

Inovenso IPS-14S Independent Double Channel Syringe Pump

Inovenso IPS-14S Independent Double Channel Syringe Pump

SKU: INVSIPS14S

  • £1,07800
  • Save £12000

Inovenso IPS-14S Independent Double Channel Syringe Pump

Buy Inovenso IPS syringe pump from MSE Supplies at the best value.

Overview

The IPS-14S Syringe Pump is an advanced dual-channel fluid handling device designed to meet the demanding requirements of various industries. With its versatile features and precise control, the IPS-14S offers reliable performance for a wide range of fluid delivery applications.

Key Features

  • Independent Syringe Channels: The IPS-14S features two independent syringe channels, allowing simultaneous operation of different fluids or separate control over each channel. This versatility enables efficient handling of complex fluid delivery tasks.
  • Wide Syringe Compatibility: Compatible with glass, plastic, and steel syringes, the IPS-14S supports syringes ranging from Hamilton 0.5 μl (ID: 0.103mm) to Monoject 140 ml (ID: 38mm). This broad compatibility provides flexibility to users for various volume requirements.
  • Precise Flow Control: With a flow rate range from 17.89 picoliters per minute to 121.51 milliliters per minute, the IPS-14S ensures accurate and consistent fluid delivery. Its stepper motor and microcontroller with Microstep Drive technology offer precise control over flow rates with a resolution of 357 nm/μstep.
  • Intuitive Interface: Equipped with a 4.3-inch Resistive Touch TFT LCD screen and user-friendly microcontroller software, the IPS-14S provides an intuitive interface for easy programming and monitoring. Users can adjust flow rates and other parameters effortlessly, enhancing operational efficiency.
  • Adaptive Pumping: The IPS-14S allows for adjustable flow rates even during the pumping process, enabling users to fine-tune parameters for optimal performance. This adaptability ensures precise handling of fluid delivery tasks with flexibility and control.

Technical Specifications

Syringes
Capacity 2 Interdependent
Type Glass, plastic, steel
Min Size Hamilton 0.5 µl (ID:0.103mm)
Max Size Monoject 140 ml (ID:38mm)
Flow Rate
Min 17.89 pl/min (Hamilton 0.5 µl)
Max 121.51 ml/min (140 ml Monoject Syringe)
Motor Type Stepper Motor
Motor Drive Controller Microcontroller with Microstep Drive
Step Resolution (Travel/Microstep) 357 nm/µstep
Step Rate
Min 10 sec/µstep
Max 200 µsec/µstep
Min 2.14 µm/min
Max 107.14 µm/min
Linear Speed Rate (Pusher Travel Rate)
Linear Force 20 kg for each syringe
Connectors Wi-fi (optional)
Recipe Save-Recall Yes
Power Supply 12 VDC 1A (110-240 VAC adapter included)
Dimensions W:200 L:257 H:137 mm
Weight 3.3 kg
Environmental Specifications
Operating Temperature Between -10 and 50 (°C)
Storage Temperature Between -30 and 85 (°C)
Operating Humidity RH 10% - RH 90% (not condensed)
Storage Humidity RH 10% - RH 90% (not condensed)

MSE Supplies offers a variant of Syringe Pump. Please contact us for more information.
