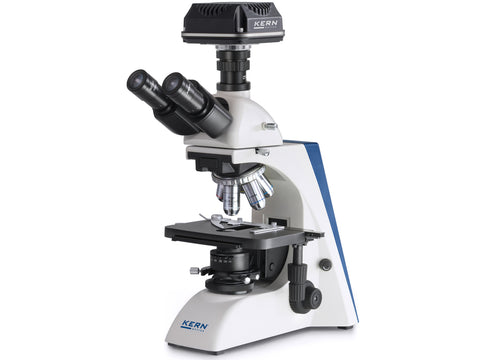

Kern Digital Microscope Set OBN 132C825

Kern Digital Microscope Set OBN 132C825

Buy Kern products from MSE Supplies at the best value.

MSE Supplies offers a Digital Microscope from KERN & SOHN GmbH. They are the ideal helper for getting started with the analysis of your optically active solutions in the laboratory.

A digital microscope is a variation of a traditional optical microscope in which a digital/microscope camera is connected, and image output is displayed on a screen and/or monitor. Most models include software and a computer for use. The magnification produced by a digital camera is determined by the size of the monitor an image is displayed on, giving it greater magnification capabilities than the average optical microscope. The power of magnification in a traditional microscope is determined by multiplying eyepiece magnification by objective lens magnification.

Country of Origin: Made in Germany

Manufacturer:  KERN & SOHN GmbH

Product Features

• Laboratory microscopes from the OBN series are also available to you as a comprehensive digital solution with an mounted C-mount camera for your live investigations. Naturally, the appropriate C-mount adapter is included with the delivery
• The mounted C-mount camera is available in different versions and can be used anywhere
• A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery.

OBN 132

• The OBN- series stands out because of its unbeatable and consistently high quality and its ergonomic design. The range of modular components means that the OBN series can be individually customised for the professional user.
• Strong and continuously dimmable 3W-LED illumination
• This series has a professional Koehler illumination unit with an adjustable field diaphragm as well as a height-adjustable 1,25 Abbe condenser which can be centred and which has an adjustable aperture diaphragm.
• The extremely large mechanical stage with ergonomic, coaxial coarse and fine focusing knob on both sides enables you to adjust and focus your sample rapidly and accurately

ODC 825

• Through the proven CMOS technology, in connection with the USB 2.0 the images are shown quickly and clearly
• These cameras are also ideal for more demanding applications, such as, for example, darkfield, phase contrast and for fluorescence applications.
• Your daily work is made significantly easier with the very best synchronisation, a high frame rate as well as stable image performance together with our Microscope VIS software which we deliver with the product.
• The power supply is through the USB cable, which means that no additional power supply is required
• As well as the camera, the delivery includes our multi-lingual KERN Microscope VIS Basic KERN OXM 901, a USB cable (Length: 2000 mm) various eyepiece adapters and an object micrometer to calibrate the software.

Product Parameters

About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!

MSE Supplies is an authorized distributor for KERN & SOHN GmbH.
