Kern Load Cell CK 50-Y4
SKU: CK 50-Y4
Kern Load Cell CK 50-Y4
MSE Supplies offers a Load Cell from KERN & SOHN GmbH. They are the ideal helper for getting started with the analysis of your optically active solutions in the laboratory.

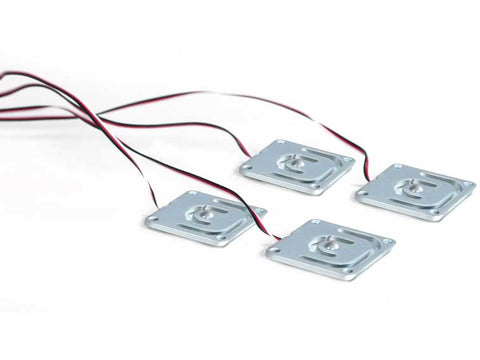

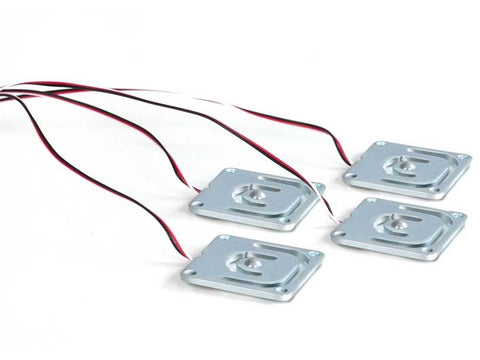

Flat miniature alloy steel load cell.
Country of Origin: Made in Germany
Manufacturer: KERN & SOHN GmbH
Product Features
- High precision (comprehensive Error 0,05% F.S.)
- Very low design
- RoHS compliant
- Scope of delivery: 4 pieces
- Quarter bridge circuit: 4 weighing cells are connected to a full bridge
- No junction box necessary
- No corner adjustment
- Ideal, for example, for the construction of personal floor scales, kitchen scales, postal scales or other scales with minimal structural height.
Product Parameters
| Weighing capacity [Max] | 50 kg |
| Design | Miniature bending beam |
| Directions of force | compression |
| Measuring applications | mass |
| Load cell - Combined error | 0,05% |
| Load cell OIML class | C1 |
| Load cell - characteristic value - nominal | 0,8 mV/V |
| IP protection - complete device | IP65 |
| Material | steel, galvanized |
| Load cell connection | 4-wire |
| Cable length | 0,45 m |
| Mounting - force application | Support point |
| Mounting - force dissipation | 4 × through hole Ø 3,1 mm |
About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!
MSE Supplies is an authorized distributor for KERN & SOHN GmbH.
