Kern Mechanical Force Gauge 283-252
SKU: 283-252
Kern Mechanical Force Gauge 283-252
MSE Supplies offers a Mechanical Force Gauge from KERN & SOHN GmbH. They are the ideal helper for getting started with the analysis of your optically active solutions in the laboratory.

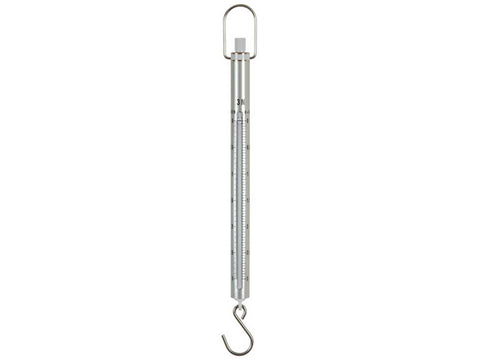

Precise, mechanical force gauge in robust aluminum housing with Newton readout.
Country of Origin: Made in Germany
Manufacturer: KERN & SOHN GmbH
Product Features
- Aluminum scale tube: robust, long service life, handy
- Newton scale: Measuring result displayed in Newton
- Double scale: For fast or precise recording of the measurement result
- Compressive force measurement: possible using an optional pressure set
- Carrying handle as standard
- High precision: Backlash-free spring bearing with integrated tare screw for highly-precise adjustment
- Non-fatigue stainless steel spring
- Clip loop which can be freely rotated of the lower suspension bracket by 360°
- High-quality workmanship: Wear-resistant, colour-anodised precision scale with high resolution for accurate readability of the measuring result.
Product Parameters
| Measuring range force [Max] (N) | 3 N |
| Readability force [d] (N) | 0,02 N |
| Tolerance (% of [Max]) | 0,3% |
| Load support (tensile force) | Hook |

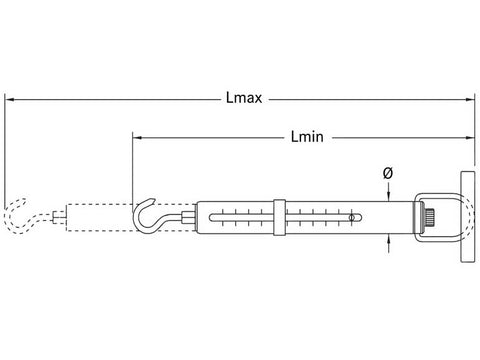

| Length unloaded (l [Min]) | 225 mm |
| Length loaded (l [Max]) | 325 mm |
| Housing diameter (Ø) | 12 mm |
| Dimensions completely mounted (W×D×H) | 225×12×12 mm |
| Material housing | aluminum |
About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!
MSE Supplies is an authorized distributor for KERN & SOHN GmbH.
