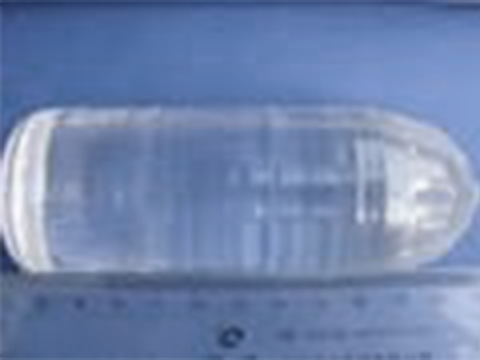

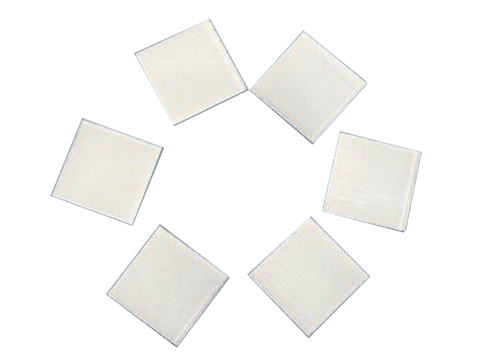

LiAlO2 Lithium Aluminate Crystals Substrates
SKU: SU4001
|
Main Parameters
|
|
|
Crystal structure
|
M4
|
|
Unit cell constant
|
a=5.17 A c=6.26 A
|
|
Melt point (°C)
|
1900
|
|
Density
|
2.62 g/cm3
|
|
Hardness
|
7.5 mohs
|
|
Size
|
10x3mm, 10x5mm, 10x10mm, 15x15mm, 20x15mm, 20x20mm
|
|
D = 15, 20 mm, 1", 2"
|
|
|
Thickness
|
0.5mm, 1.0mm
|
|
Polishing
|
Single or double side polished
|
|
Crystal Orientation
|
<100> / <001>
|
|
Crystal orientation accuracy
|
+/- 0.5 ø
|
|
Redirection the edge:
|
2 ø special in 1 ø
|
|
Angle of crystal
|
Special size and orientation are available upon request
|
|
Ra:
|
~ (5 x 5 A), epi-ready
|
|
Pack
|
Class 100 clean bag packed in class 1000 clean room
|
