MSE PRO 1200°C Vacuum Atmosphere Box Furnace
SKU: MA0520
To better serve you, we would like to discuss your specific requirement.
Please Contact Us for a quote.

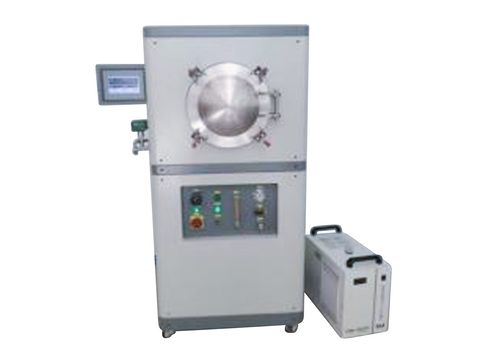

MSE PRO™ 1200°C Vacuum Atmosphere Box Furnace
MSE Supplies offers a 1200°C Vacuum Atmosphere Box Furnace with maximum working temperature of 1200°C and the inner chamber size is 300*400mm. It is widely used for many processes, including heat treatment of metal in different atmospheres, catalyst formation that need inert gas protection, etc. Fields of application include semiconductor, nanotechnology and carbon fiber, etc.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
Main Features:
Touchscreen control with PID adjustment and self-tuning, programmable with at least 30 heating and cooling segments; features over-temperature alarm, over-current protection, and thermocouple disconnection warning
Technical Data:
| SKU# |
MA0520 |
| Inner Chamber Size (Quartz Tube) | φ300 × 400 mm |
| Power Supply | 380V |
| Maximum Temperature | 1200℃ |
| Temperature Measurement Method | K-type thermocouple |
| Heating Rate (Recommended) | ≤10℃/min |
| Maximum Power | 12KW |
| Operating Temperature (Recommended) | ≤1100℃ |
| Temperature Control Accuracy | ±1.0℃ |
| Heating Element | 0Cr27A17Mo2 high-resistance electric heating alloy wire |
| Heating Method | Circumferential + rear heating |
| Furnace Shell Structure | Double-layer air-cooled sealed shell structure |
| Furnace Chamber Material | Polycrystalline mullite fiber |
| Furnace Door Cooling Method | Water cooling (equipped with a water chiller) |
| Furnace Door Locking Mechanism | Stainless steel quick-release clamps |
| Ultimate Vacuum | -0.1 MPa (vacuum pressure gauge display) |
| Gas Types | Nitrogen, Argon |
| Gas Control | 1 floating flowmeter |
| Exhaust Treatment | Direct discharge outdoors |
| Structure | Floor-standing |
| Standard Accessories |
Pre-vacuum pump (1), Analog pressure gauge (1), Water chiller (1), Insulation plug (1), Floating flowmeter (1) |
| Note | Sample holder/crucible not included |
MSE Supplies offers Tube Furnaces with different sizes and Tmax . For more information, please contact us.
