MSE PRO 1600°C Single Heating Zone Vertical Tube Furnace VT 80/260/16 - MSE Supplies LLC

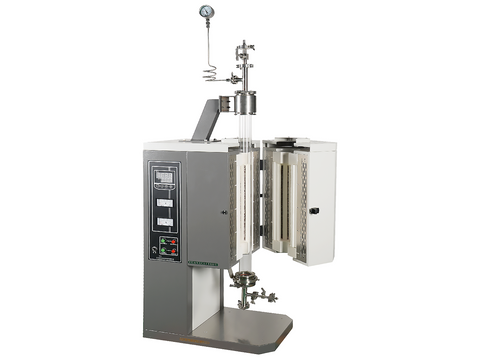

MSE PRO 1600°C Single Heating Zone Vertical Tube Furnace VT 80/260/16

SKU: MA0490

  • £9,31500
  • Save £1,02900

MSE PRO™ 1600°C Single Heating Zone Vertical Tube Furnace VT 80/260/16

MSE Supplies offers a Single Heating Zone Tube Furnace VT 80/260/16 with maximum working temperature of 1600°C and heating region of Ø80x260mm. Tube furnaces provide users with vacuum/controlled atmosphere and high temperature. It is widely used for many processes, including heat treatment of metal in different atmospheres, catalyst formation that need inert gas protection, etc. Fields of application include semiconductor, nanotechnology and carbon fiber, etc.

Brand: MSE PRO™

Manufacturer: MSE Supplies LLC

Main Features:

  • High current protection guarantees long service life
  • High heating rate
  • Uniform temperature distribution
  • Easy-to-operate
  • With PID adjustment, fuzzy control, and self-tuning functions
  • Programmable controller with 50 segments
  • Can be connected to a laptop for remote control, real-time tracking, history recording and data output (available upon request)
  • Over-temperature protection and electric shock protection
  • Airtight and automatically adjust the pressure in the tube when pressure is high
  • Corrosion Resistance
  • Stainless steel embossed board

Technical Data:

Model VT 80/260/16
SKU MA0490
Maximum Temperature 1600℃
Working Temperature ≤1600℃
Heating Zone Single Temperature Zone
Furnace Tube Material Corundum Tube
Quartz Tube Dimension φ80/70*1000mm
Heating Zone Length 260mm
Constant Temperature Zone Length 120mm
Voltage

208V Three Phase

Plug is not included for safety concern
Power 7 kW
Furnace Body Dimension 600*660*1260mm
Weight 95kg
Heating Elements 1700℃ silicon molybdenum bar
(Recommended) Heating Rate 0℃-1000℃≦10℃/min；
1000℃-1600℃≦5℃/min
Flange Structure Double-ring Sealing Clamp for Quick Connection
Temperature Control Accuracy ±1℃
Temperature Control Programmable temperature control system with 50 segments
Warranty One-year limited warranty with lifetime support. Not responsible for damage caused by improper use
Standard Configuration A set of gas circuit assembly (including a vacuum pressure gauge), a corundum tube, a coolant flange and a pair of heat-resistant gloves

We offer Tube Furnaces with different sizes and Tmax. For more information, please contact us.
