MSE PRO™ 1600°C Tube Furnace T 100/260/16 - MSE Supplies LLC

MSE PRO 1600°C Tube Furnace T 60/260/16

SKU: MA0522

  • £9,33700
  • Save £1,02900

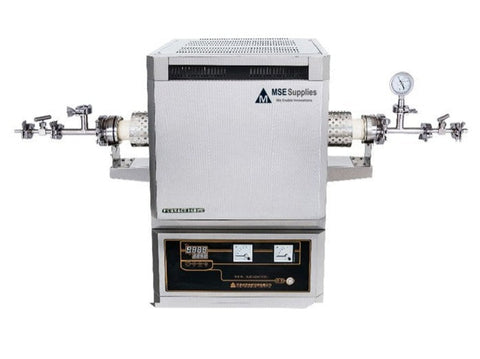

MSE PRO™ 1600°C Tube Furnace T 60/260/16

MSE Supplies offers a 1600°C Tube Furnace T 60/260/16 with maximum working temperature of 1600°C and heating region of Ø60x260mm. Tube furnaces provide users with vacuum/controlled atmosphere and high temperature. It is widely used for many processes, including heat treatment of metal in different atmospheres, catalyst formation that need inert gas protection, etc. Fields of application include semiconductor, nanotechnology and carbon fiber, etc.

Brand: MSE PRO™

Manufacturer: MSE Supplies LLC

Main Features:

  • High current protection guarantees long service life
  • High heating rate
  • Uniform temperature distribution
  • Easy-to-operate
  • With PID adjustment, fuzzy control, and self-tuning functions
  • Programmable controller with 50 segments
  • Can be connected to a laptop for remote control, real-time tracking, history recording and data output (available upon request)
  • Over-temperature protection and electric shock protection
  • Airtight and automatically adjust the pressure in the tube when pressure is high
  • Corrosion Resistance
  • Stainless steel embossed board

Technical Data:

Model T 60/260/16
SKU#
 MA0522
Maximum Temperature 1600℃
Working Temperature ≤1600℃
Heating Zone Single Temperature Zone
Furnace Tube Material Corundum Tube
Quartz Tube Dimension φ60/50*1000mm
Heating Zone Length 260mm
Constant Temperature Zone Length 120mm
Voltage

208V Single Phase

Plug is not included for safety concern
Power ~4 kW
Furnace Body Dimension 540*600*840mm
Weight 145kg
Heating Elements 1700℃ silicon molybdenum bar
(Recommended) Heating Rate 0℃-1000℃≦10℃/min;
1000℃-1600℃≦5℃/min
Flange Structure Double-ring sealing clamp for quick connection
Temperature Control Accuracy ±1℃
Temperature Control Programmable temperature control system with 50 segments
Warranty One-year limited warranty with lifetime support. Not responsible for damage caused by improper use
Standard Configuration A set of gas circuit assembly (including a vacuum pressure gauge), a corundum tube, four corundum plugs, a corundum boat, a hook and a pair of heat-resistant gloves

MSE Supplies offers Tube Furnaces with different sizes and Tmax . For more information, please contact us.
