3N5 (99.95%) Palladium (Pd) Pellets Evaporation Materials, 1g - MSE Supplies LLC

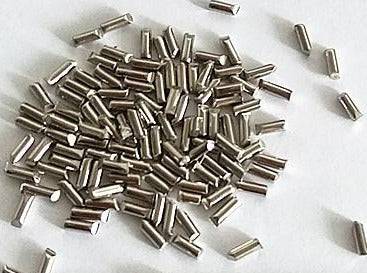

MSE PRO 3N5 (99.95%) Palladium (Pd) Pellets Evaporation Materials

SKU: TA3302

To better serve you, we would like to discuss your specific requirement.
Please Contact Us for a quote.

Palladium (Pd) is a rare and lustrous silvery-white metal. More than half the supply of palladium is used in catalytic converters, which convert as much as 90% of the harmful gases in automobile exhaust into harmless substances. It is also used in electronics, dentistry, medicine, hydrogen purification, chemical applications, groundwater treatment, and jewelry. It is a key component of fuel cells, which react hydrogen with oxygen to produce electricity, heat, and water. Palladium coating is mainly used for hydrogen storage, separation and detection. It is evaporated under vacuum for the manufacture of semiconductors, sensors, and data storage.

The dimensions and purities can be customized upon request. Please contact us for customization or bulk orders.

Name Palladium
Chemical Formula Pd
CAS # 7440-05-3
Atomic Number 46
Molecule Weight (g/mol) 106.42
Color/Appearance Silvery White Metallic
Purity ≥99.95%, 3N5
Thermal Conductivity (W/m.K) 72
Melting Point (°C) 1,554
Coefficient of Thermal Expansion (/K) 11.8 x 10-6
Theoretical Density (g/cm3) 12.02
Z Ratio 0.357
E-Beam Excellent
Thermal Evaporation Techniques Boat:  W (Alumina Coated)
Coil:  W
Basket:  W
Crucible:  Al2O3
E-Beam Crucible Liner Material Graphite, Tungsten
Temp. (°C) for Given Vap. Press. (Torr) 10-8:  842
10-6:  992
10-4:  1,192

MSE Supplies offers a variety of crucibles for evaporation materials. We can customize the dimensions based on your requirements.

References:

1. Structure evolution of epitaxial Pd grown on MgO (001): a comparison between sputtering and electron-beam evaporation. Thin Solid Films 349, no. 1-2 (1999): 4-9.

2. Deposition of palladium on suspended and locally grown carbon nanotubes using thermal evaporation. In 2013 13th IEEE International Conference on Nanotechnology (IEEE-NANO 2013), pp. 1176-1179. IEEE, 2013.

3. Nanogap-controlled Pd coating for hydrogen sensitive switches and hydrogen sensors. Sensors and Actuators B: Chemical 255 (2018): 1841-1848.
