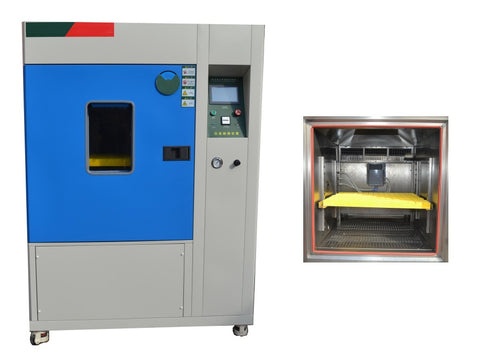

MSE PRO 512L Salt Temperature Humidity Test Chamber
SKU: MA2055
MSE PRO™ 512L Salt Temperature Humidity Test Chamber
The MSE PRO™ Salt Temperature Humidity Test Chamber is designed to simulate complex environmental conditions, allowing for the accelerated corrosion testing of materials in salt spray, dry, and humid conditions. This advanced chamber is essential for testing the durability of metal materials and their protective coatings under various environmental stressors, making it an ideal tool for quality assurance in industries like automotive, aerospace, and electronics. The chamber meets international standards such as GB/T 20854-2007 and ISO 14993:2001, ensuring reliable and accurate testing results.
- Versatile Environmental Simulation: The chamber supports a range of test modes, including salt spray, wet heat, and dry conditions, providing accurate testing for metal materials and coatings in harsh environments.
- Precise Control and Accuracy: The chamber features temperature resolution of 0.01℃ and humidity resolution of 0.1% RH, ensuring precise control of environmental conditions for consistent testing outcomes.
- Advanced Corrosion Testing: This chamber is designed for testing metals and alloys exposed to salt-contaminated environments, with functions like continuous or intermittent salt spray for better reproduction of outdoor corrosion conditions.
- Efficient Heating and Cooling Systems: Equipped with a patented titanium tube heating system and efficient air-cooled condenser, the chamber ensures rapid temperature adjustments, providing energy-efficient operation.
- Robust Construction: Built with pure titanium and stainless steel, the chamber is resistant to corrosion, ensuring long-term reliability even under rigorous testing conditions.
- User-Friendly Interface: The 7-inch true color LCD touch screen allows easy operation with multi-language support programmable test sequences, and remote control capabilities via Ethernet or USB interface.
- Compliance with International Standards: The chamber adheres to various international standards for environmental testing, including IEC60068 and ISO9227, providing validated and consistent test methodologies.
- Comprehensive Safety Features: Safety is enhanced with multiple protection mechanisms such as over-temperature, overpressure, and leakage circuit breakers to safeguard both the equipment and the operator.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
Technical Specifications:
SKU | MA2055 |
Internal Capacity | 512L |
Power Supplier Voltage | Three Phase 208V 60Hz, Plug is not included for safety concern |
Temperature Range | 20~70℃ adjustable |
Humidity Range | 20%~98% RH |
Salt Mist Settlement | 1~2ml/(h·80cm²) adjustable |
Equipment
Humidification And
Saturated Bucket Water
Supply
|
The water supply pressure is 0.2~0.4Mpa, the water supply pipe diameter is 20mm, the water supply quality should meet the tertiary water standard
stipulated in GB / T 6682-2008 analytical laboratory water specification and test method standard, the equipment reserves the water supply interface 1 / 2
" inner teeth, and the water consumption is about 60L / 24h.
|
Ambient Condition
|
Temperature: 5~30℃, relatively wet 85% RH
Air pressure: 86 kPa ~ 106 kPa
Note: Air conditioning should be installed at the equipment installation site to ensure the ambient temperature.
|
Site Requirements
|
Size requirements of the equipment
installation site
A: Not less than 1000mm
B: not less than 500mm
C: not less than 1500mm
The ground is flat and well ventilated.
No strong vibration around the equipment.
There is no strong electromagnetic field.
influence around the equipment.
There is no flammable, explosive, corrosive substances and dust around the equipment.
Proper use and maintenance space is left around the equipment.
![]() |
Prepare Water For Salt
Water
|
The water quality shall meet the water standard above grade 2 stipulated in GB / T 6682-2008 analytical laboratory water specification and test method standard, and the water consumption is about 30~40L / 24h continuous spray condition.
|
Compressed Air
|
Gas supply pressure is 0.4~0.8Mpa, and gas consumption is 2m³ /h continuous spray state.
|
Dimension (WxDxH) | 1400x1950x1450mm |
Salt Water Tank Size
|
Φ600×H800mm, capacity 200L.
|
Power
|
14.9kW
|
Noise Level | ≤75dB |
