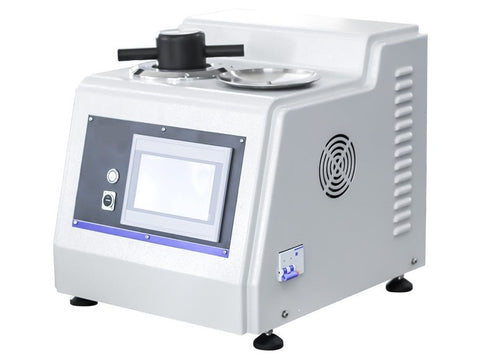

MSE PRO Automatic Metallographic Mounting Press, Mold Diameter 30mm
SKU: MA1358
MSE PRO™ Automatic Metallographic Mounting Press, Mold Diameter 30mm
MSE Supplies offers a Metallographic mounting press. It is suitable for the hot pressing of small metallographic specimens that are irregular in shape and not easy to handle with thermosetting plastics. After molding, it is convenient to carry out specimen grinding and polishing operations, and it is also conducive to microscopic tissue determination under the metallographic microscope.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
Main Features:
- The motor adopts closed-loop control for pressing the inlay material, ensuring stable and reliable pressure with low noise.
- High-quality heating/cooling system optimizes heat transfer and cooling, achieving rapid circulation. The preheating function maintains a constant standby temperature of the equipment, reducing heating time and shortening the sample preparation time.
- Touch screen display for simple operation and convenient and intuitive parameter setting.
- Built-in storage of 99 sets of processes (saving parameters such as materials), allowing for the retrieval of a specific process to meet specific requirements at any time.
- One-button startup to automatically complete the sample preparation process.
- USB interface for importing and exporting inlay process parameters via USB flash drive.
MSE supplies offers various metallographic mounting presses with different capacities as well as other metallographic equipment, please contact us for more information.
Technical Specifications:
SKU |
MA1358 |
Mold Diameter |
30mm Standard 22mm, 45mm Optional |
Heater |
560W |
Thermostat Range |
0-200℃ |
Time Range |
0-30min |
Incoming Pressure Control |
Automatic (by motor) |
Cooling Method |
Water cooling (water chiller not included) |
Display Control |
Touch screen |
Program |
99 sets of processes |
Working Mode |
Automatic/Manual |
Total Power |
1000W |
Power Supply |
110V 60Hz |
Outer Dimensions |
530x430x410mm |
Weight |
66kg |
