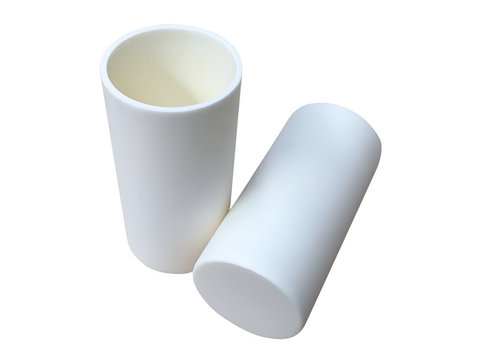

MSE PRO High Purity Alumina (Al<sub>2</sub>O<sub>3</sub>) Cylindrical Crucible with Large Capacity

MSE PRO High Purity Alumina (Al2O3) Cylindrical Crucible with Large Capacity

SKU: JA1250

  • £2600
  • Save £200

MSE PRO™ High Purity Alumina (Al2O3)Cylindrical Crucible with Large Capacity

High purity alumina (Al2O3) crucibles have high melting point, high hardness and good chemical stability. Cylindrical alumina crucibles are widely used for chemical calcination, metal casting and ceramic sample preparation.

Covers for high purity alumina (Al2O3) crucibles are also available.

Powder processing is recommended for the best calcination and sintering results. MSE Supplies offer a variety of balling milling equipment and accessories for powder processing.

Standard Products and Specifications

SKU# JA1250 JA1251 JA1252 JA1253 JA1254
Dimensions Φ60x100 mm Φ72x148 mm Φ84x160 mm Φ120x120 mm Φ152x146 mm
Capacity 250 mL 500 mL 750 mL 1000 mL 2000 mL
Purity >99% >99% >99% >99% >99%
Maximum temperature 1600 °C 1600 °C 1600 °C 1600 °C 1600 °C

Crucible dimensions can be customized upon request. The dimensions listed above are for reference only. Please contact us if you need tight tolerance.

Crucibles are considered as consumables which are not covered by warranty.

Notes for use

  • Place the crucible in 105 °C oven for 2h to remove the moisture before the first use
  • Do not heat and cool faster than 5 °C/min <1200 °C or 4 °C/min >1200 °C
