MSE PRO Laboratory Knife Mill
SKU: MA1120

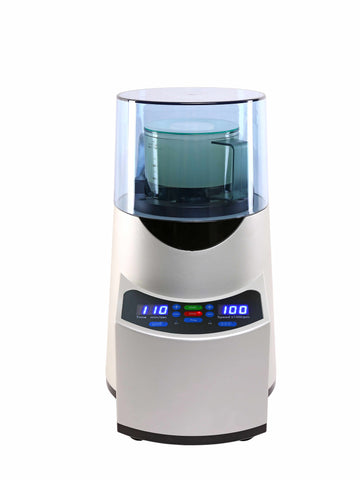

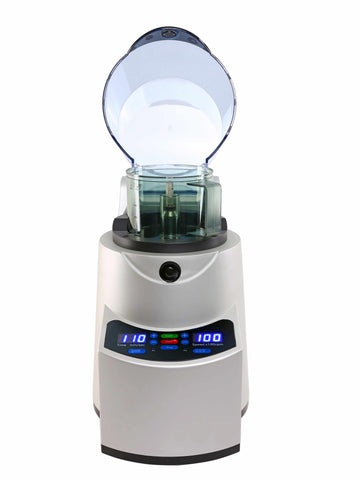

MSE PRO™ Laboratory Knife Mill
MSE Supplies offers laboratory knife mill, which is used to process the soft, medium-hard, brittle and fibrous sample. It is suitable for high water, oil or fat content sample.
Contact us today to discuss your needs.
Working Principle

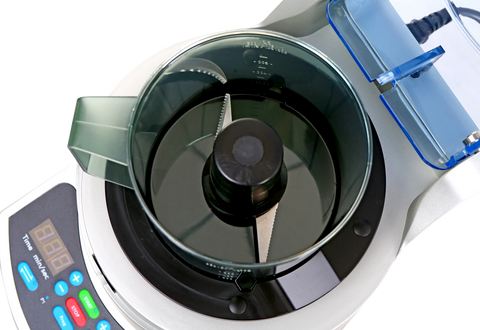

The knife mill has two-blade knives at the center of the bottom of a grinding cup. A certain height gap is kept between the blades. Driven by a motor of 1100W, the knives start rotating. Reliable crushing and homogeneous phase effects are generated via the cutting of the sharp steel knife edges. The blunt side can be selected for coarse grinding of bulk samples or the tough side for fine grinding of samples. The motor speed is electronically controlled and can be preset. The constant speed guarantees efficient and high-quality grinding homogenization. You just need 10 to 30 seconds to process samples that are usually hard to crush and get homogenized samples for analysis.
Features and advantages
- Autoclavable container for choice
- Grinding container in various material
- Simple operation and quick start
- Strong motor power 1.1KW, speed adjustable
- Coarse grinding and fine grinding can be realized in one step
- Three modes optional: interval mode, reverse mode and press-and-play mode
- Overload protection and safety lock design
Applications of Laboratory Knife Mill:
Biology: mouse tissue, plant leaves, seeds, seedling and germ
Medicine: medicine, pills, etc
Food: dried melon, vegetables, frozen food, candy, preserved fruit, meat
Technical Data
| SKU | MA1120 |
| Feed size | <40mm |
| Final fineness | <300μm |
| Speed | 2000-10000rpm |
| Time setting | 0:01-9:59 (min/s) |
| Batch quantity | 150-700ml |
| Interval mode | Yes |
| Knives | Stainless steel or titanium alloy |
| Number of blades | 2 |
| Rated power | 1.1KW |
| Power supply | 110V 60Hz with External Transformer |
| Instrument size | 260*343*454mm |
| Package size | 480*550*720mm |
| Net weight | 16kg |

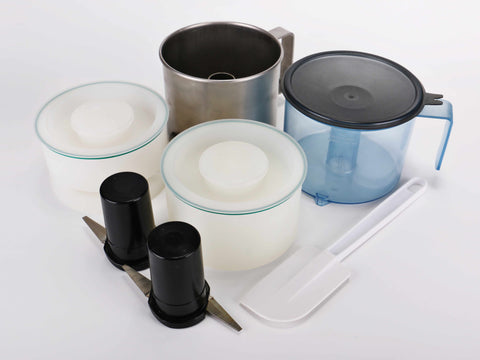

Standard accessories: 1L grinding container of autoclavable plastic, standard lid and knife of stainless steel.
