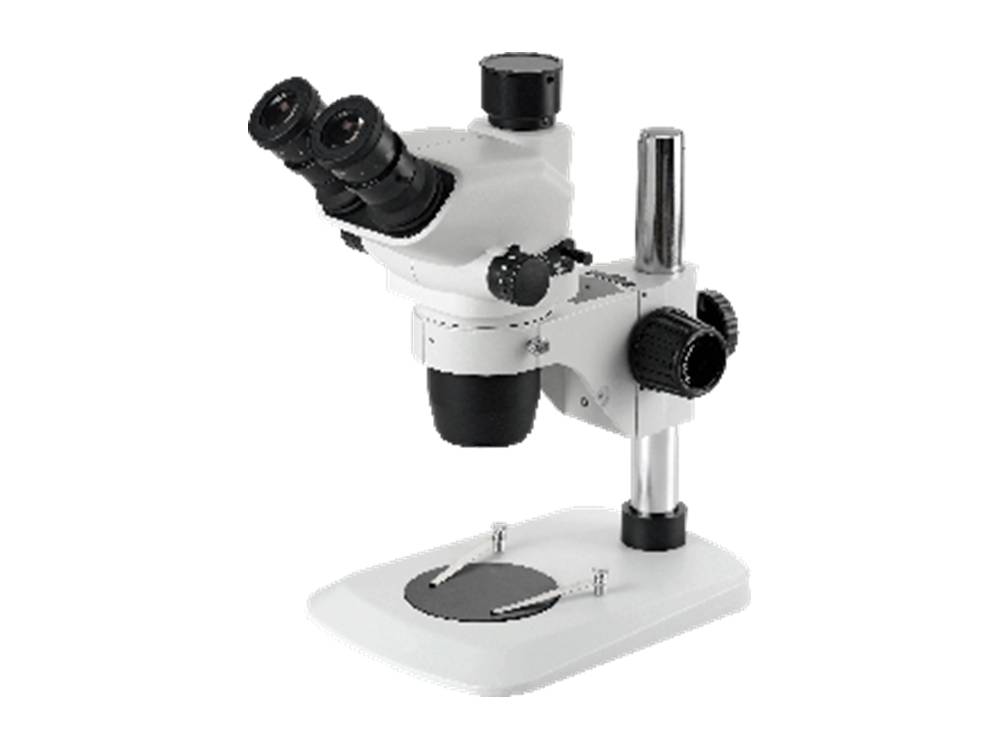

MSE PRO SMK-1047 Zoom Stereo Microscope

MSE PRO™ SMK-1047 Zoom Stereo Microscope

Adopting the Greenough optical system, the MSE PRO™ SMK-1047 trinocular zoom stereo microscope comes with a compact structure, high-quality optics, and reliable illumination. Its newly designed optical path and click-stop function make it more precise and practical for inspecting electronic components and PCB boards in the industrial field. It is also suitable for scientific research, education, and antique identification, among other applications. Optional eyepieces, auxiliary objectives, stands, and illumination devices can expand its capabilities to meet various requirements.

1.Click stop function
New main magnification freeze frame function has been added, which can accurately and repeatedly locate the same magnification, effectively solving the problem of magnification calculation when observing objects. The zoom handwheel feels lightweight and comfortable, effectively avoiding fatigue caused by long-term operation.

2.Flatness and depth of view
Greenough optical system with convergence angle of 10 degree, and working with wide field plan eyepieces, ensures the excellent flatness and depth of field.

3.Diverse auxiliary objectives
Various auxiliary objectives 0.3X/0.4X/0.5X/0.7X/1.5X/2X for option, to expand MSE PRO™ SMK-1047 stereo microscopes’ magnification from 2X to 180X. The Max. working distance is 287mm while the Min. is 26mm, to meet all the requirements from different applications.

4.Abundant illumination systems.
LED/halogen/fluorescence illuminations for option, either built-in illuminator or external type is available, provide the best image by choosing a suitable light.

Application

MSE PRO™ SMK-1047 trinocular zoom stereo microscope is widely used in education, lab research, biology, metallurgy, engineering, chemistry, manufacturing and in the medical, forensic science and veterinary industries. The microscopes can be used for circuit board repair and inspection, semiconductor inspection, SMT work, electronics inspection, dissection, coin collecting, gemology and gemstone setting, engraving, repair and inspection of small parts.

* 45° inclined trinocular head with fixed eyepiece tube, interpupillary distance: 52-76mm * High eyepoint wide field plan eyepiece PL10X/22mm
* Zoom objective 0.67×-4.5×, zoom ratio 1:6.7
* Pillar stand small fan-shaped base

Brand: MSE PRO™

Manufacturer: MSE Supplies LLC
