NEST Transfer Caps for High Efficient Erlenmeyer Flask (For Bioprocess)
SKU: C10111-AJE052B
NEST Transfer Caps for High Efficient Erlenmeyer Flask (For Bioprocess)
Application:
It is applicable to liquid transfer and culture during mass proliferation of bacteria and suspension cells.
Product Features
- Closed transfer reduces the risks of contamination during liquid transfer.
- The cap is molded and connected in an integrated manner, reducing the risks of leakage and media residues.
- A variety of tubing diameters are available and aseptic welding of liquid inlet tubing under normal conditions is supported.
- High-quality materials and smooth inner wall of the tubing provide an excellent transfer performance.
- Sterility level (SAL) is maintained at 10-6.
- Endotoxin-free, and no ingredients of animal origin.
- Individually packaged in sterile bag.
|
Bi-directional Liquid Transfer Cap
Bi-directional liquid transfer cap is used along with a 2L, 3L or 5L shake flask to connect a liquid inlet
tubing with the required device. The liquid transfer is achieved by connection of a peristaltic pump
between the erlenmeyer flask and the device. Upon completion of the transfer, the transfer cap can be
replaced with a vent cap for culture.
|
 |
|

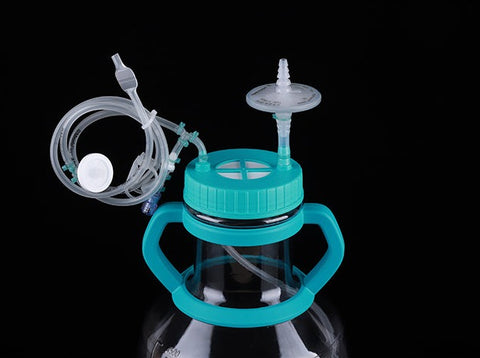

Multifunctional Liquid Transfer Cap
Unlike the bi-directional liquid transfer cap, the multifunctional transfer cap can be directly placed in an
incubator for culture after the liquid transfer is completed. It can reach a large air flux. The sampling part
is composed of a sampling nozzle and a one-way valve, which can prevent the liquid from flowing
backwards during the sampling process and ensure the aseptic sampling. The liquid inlet tubing is
provided with a PTFE needle filter, which solves the issue of liquid remaining in the tubing during the
feeding process.
|
 |
|
Inverted Liquid Transfer Cap
The inverted transfer cap is used along with a 2L, 3L or 5L
erlenmeyer flask to connect a liquid inlet tubing with the required
device. When liquid transfer is required, the liquid is transferred
under gravity with the inverted erlenmeyer flask.
|
 |
|
SKU |
Name |
Information |
Pipe length |
/pack |
/case |
|
C10111-AJE052B |
Multifunctional Liquid Transfer Cap for 2L
|
Thermoplastics Pipes
Pipe Diameter: 1/8" ID,
1/4" OD,
Pipe Connect: Aseptic
welding / Heat-seal
|
52cm |
1 |
4 |
|
C10211-AJE052B |
Multifunctional Liquid Transfer Cap for 3L
|
52cm |
1 |
4 |
|
| C10311-AJE052B |
Multifunctional Liquid Transfer Cap for
3L Wide-mouth
|
52cm | 1 | 4 | |
|
C10411-AJE092B |
Multifunctional Liquid Transfer Cap for 5L
|
92cm |
1 |
4 |
|
|
C10122-AZB050B |
Bi-directional Liquid Transfer Cap for 2L
|
50cm |
1 |
4 |
|
|
C10222-AZB050B |
Bi-directional Liquid Transfer Cap for 3L
|
50cm |
1 |
4 |
|
| C10322-AZB050B | Bi-directional Liquid Transfer Cap for 3L Wide-mouth | 50cm | 1 | 4 | |
|
C10422-AZB090B |
Bi-directional Liquid Transfer Cap for 5L, and 3L Wide-mouth
|
90cm |
1 |
4 |
|
|
C10123BZC050B (new) |
2L Efficient Erlenmeyer Flask Transfer Cap (Two-way Cap )III (Two Wide Mouth) |
Thermoplastics Pipes
Pipe Diameter: 1/4" ID,
3/8' OD ,Pipe Connect: Aseptic welding
/ Heat-seal
|
50cm | 1 | 4 |
|
C10223BZC050B(new) |
3L Efficient Erlenmeyer Flask Transfer Cap (Two-way Cap)III (Two Wide Mouth) |
50cm | 1 | 4 | |
|
C10323BZC050B(new) |
3L Wide-mouth Efficient Erlenmeyer Flask Transfer Cap (Two-way Cap )III (Two Wide Mouth) |
50cm | 1 | 4 | |
|
C10423BZC090B(new) |
5L Efficient Erlenmeyer Flask Transfer Cap (Two-way Cap)III |
90cm | 1 | 4 | |
|
C10131-AZC050B |
Inverted Liquid Transfer Cap for 2L
|
Thermoplastics Pipes
Pipe Diameter: 1/8" ID,
1/4" OD,
Pipe Connect: Aseptic
welding / Heat-seal
|
50cm |
1 |
4 |
|
C10231-AZC050B |
Inverted Liquid Transfer Cap for 3L
|
50cm |
1 |
4 |
|
| C10331-AZC050B | Inverted Liquid Transfer Cap for 3L Wide-mouth | 50cm | 1 | 4 | |
|
C10431-AZC090B |
Inverted Liquid Transfer Cap for 5L
|
90cm |
1 |
4 |
|
|
C10133-DZC050B |
Inverted Liquid Transfer Cap for 2L, Thick Outlet Pipe
|
Thermoplastics Pipes
Pipe Diameter: 1/4" ID,
7/16"OD,
Pipe Connect: Aseptic welding
/ Heat-seal
|
50cm |
1 | 4 |
|
C10233-DZC050B |
Inverted Liquid Transfer Cap for 3L, Thick Outlet Pipe
|
50cm |
1 | 4 | |
| C10333-DZC050B | Inverted Liquid Transfer Cap for 3L Wide-mouth, Thick Outlet Pipe | 50cm |
1 | 4 | |
|
C10433-DZC090B |
Inverted Liquid Transfer Cap for 5L Thick Outlet Pipe
|
90cm | 1 | 4 | |
|
C10111-DZB050B |
-
|
-
|
50cm | 1 | 4 |
|
C10111-GBB100B |
-
|
-
|
100cm | 1 | 4 |
|
C10123-FBC050B |
-
|
-
|
50cm | 1 | 4 |
|
C10123-FDC050B |
-
|
-
|
50cm | 1 | 4 |
|
C10211-DZB050B |
-
|
-
|
50cm | 1 | 4 |
|
C10211-GBB100B |
-
|
-
|
100cm | 1 | 4 |
|
C10223-FBC050B |
-
|
-
|
50cm | 1 | 4 |
|
C10223-FDC050B |
-
|
-
|
50cm | 1 | 4 |
|
C10311-DZB050B |
-
|
-
|
50cm | 1 | 4 |
|
C10311-GBB100B |
-
|
-
|
100cm | 1 | 4 |
|
C10323-FBC050B |
-
|
-
|
50cm | 1 | 4 |
|
C10323-FDC050B |
-
|
-
|
50cm | 1 | 4 |
|
C10411-DZB090B |
-
|
-
|
90cm | 1 | 4 |
|
C10411-GBB100B |
-
|
-
|
100cm | 1 | 4 |
|
C10423-FBC090B |
-
|
-
|
90cm | 1 | 4 |
|
C10423-FDC090B |
-
|
-
|
90cm | 1 | 4 |
