Powder XRD Characterization, Powder X-ray Diffraction Analytical Service

Powder XRD Characterization offers a quick and accurate testing method for crystalline materials. Powder X-ray Diffraction Analytical Service provides reliable identification of unknown materials with a high degree of accuracy and repeatability. This method is fast and cost-effective.

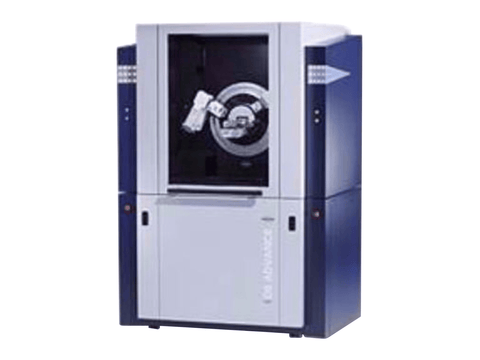

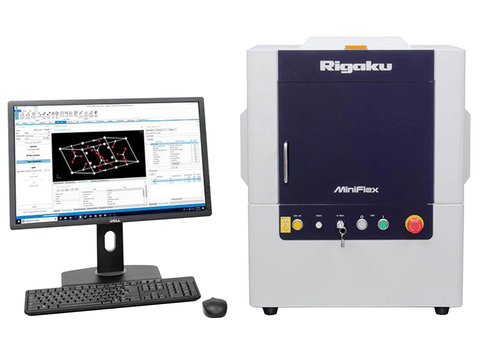

Starting from $50 per sample, MSE Analytical Services offer professional powder XRD analytical service using Rigaku MiniFlex, Bruker D8 and X'Pert Pro MPD, or similar instrument.

* Note: Data analysis service is not included in the above list prices.

• Data Processing Service: XRD background subtraction and identification of crystalline phases through the database (quantitative data analysis excluded). Cost: Please contact us for a quote.

Highlights: High Quality Data, Competitive Pricing, Technical Support by Scientists.

X-ray diffraction (XRD) is one of the most important materials characterization tools. From research to production and engineering, XRD is an indispensable method for materials characterization and quality control.

X-ray diffraction (XRD) characterization is a powerful nondestructive technique for characterizing crystalline materials. It provides information on crystal structure, phase, preferred crystal orientation (texture), and other structural parameters, such as average grain size, crystallinity, strain, and crystal defects. X-ray diffraction peaks are produced by constructive interference of a monochromatic beam of X-rays diffracted at specific angles from each set of lattice planes in a sample. The peak intensities are determined by the distribution of atoms within the lattice. Consequently, the X-ray diffraction pattern is the fingerprint of the periodic atomic arrangements in a given material. A search of the ICDD (International Centre for Diffraction Data) database of X-ray diffraction patterns enables the phase identification of a large variety of crystalline samples.

• Characterization of crystalline materials
• Identification of fine-grained minerals such as clays and mixed layer clays that are difficult to determine optically
• Determination of unit cell dimensions
• Measurement of sample purity
• Determine crystal structures using Rietveld refinement
• Determine of modal amounts of minerals
• Characterize thin films samples by:
• determining lattice mismatch between film and substrate and to inferring stress and strain
• determining dislocation density and quality of the film by rocking curve measurements
• measuring superlattices in multilayered epitaxial structures
  determining the thickness, roughness and density of the film using glancing incidence X-ray reflectivity measurements
• make textural measurements, such as the orientation of grains, in a polycrystalline sample

Please contact sales@msesupplies.com for additional information and instructions on our Analytical Services program. Confirmation of the sample(s) requirements, SDS sheets and additional information is needed prior to processing the Analytical Service order.

***Please do not ship any samples without authorization from MSE Supplies***
