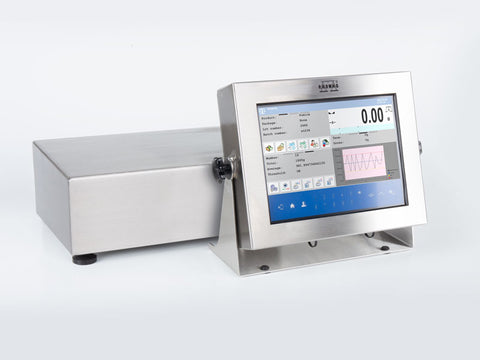

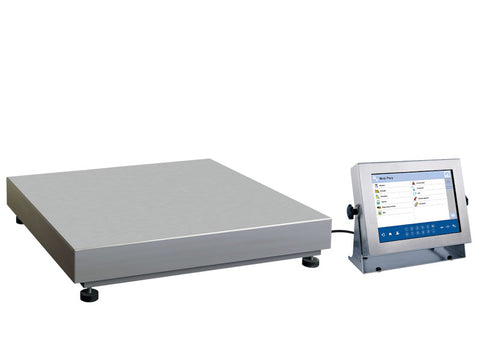

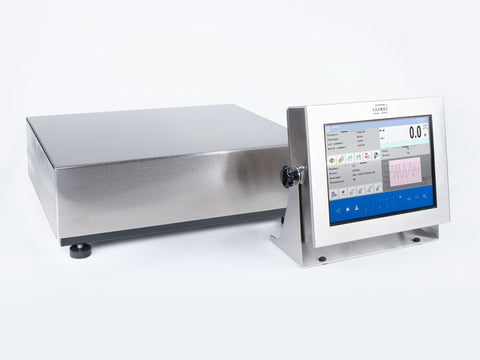

RADWAG HY10.HRP.H High Resolution Scales
SKU: WP-340-0037
RADWAG HY10.HRP.H High Resolution Scales
Buy RADWAG products from MSE Supplies at the best value.
|
Sku # |
WP-340-0037 |
WP-340-0001 |
WP-340-0002 |
WP-340-0003 |
WP-340-0009 |
WP-340-0042 |
|
Model # |
HY10.10.HRP.H |
HY10.16.HRP.H |
HY10.32.HRP.H |
HY10.62.HRP.H |
HY10.120.HRP.H |
HY10.150.HRP.H |
|
Maximum capacity(kg) |
10 |
16 |
32 |
62 |
120 |
150 |
|
Readability(g) |
0.2 |
0.1 |
0.1 |
0.1 |
0.5 |
1 |
|
Sku # |
WP-340-0005 |
WP-340-0006 |
WP-340-0007 |
WP-340-0008 |
WP-340-0012 |
|
Model # |
HY10.300.HRP.H |
HY10.300.1.HRP.H |
HY10.600.HRP.H |
HY10.1100.HRP.H |
HY10.2000.HRP.H |
|
Maximum capacity(kg) |
300 |
300 |
600 |
1100 |
2000 |
|
Readability(g) |
1 |
1 |
5 |
10 |
10 |
Maximum Robustness
The HRP high resolution scales are very robust. Their platforms are recognised to have an IP 67 level of protection. They feature additional sealing elements to protect against dust, dirt, and moisture and can thus be cleaned with a pressure washer.
9 advantages
The ability to weigh loads up to 150 kg on a large pan with high readability and good repeatability, minimal eccentricity error over the entire range, fast and stable measurement (achievable within 1 second), stability of parameters over time and after transport, and a pan dimension adapted to the scale’s readability – all this is the result of using a measurement system based on improved MONOBLOCK technology. The new – taller and larger – MONOBLOCK has enabled the best repeatability and speed in the class of high-resolution industrial weighing platforms.
Repeatability not repeatable by others
Automatic adjustment with an internal weight not only guarantees the best quality of work and repeatability of results, but also saves time and provides comfort.
For such industries as pharmaceutical, chemical, food and…
HY10.HRP H scales are ideal for industrial conditions where high readability and repeatability of measurement are required, such as in the pharmaceutical, chemical and food industries. The HY10.HRP and HX7.HRP scales whose terminals are made of stainless steel can be used even in the most demanding wet environments.
Choose a terminal
HRP high-resolution scales can work with one of two industrial terminals: PUE 7.1 and PUE HY10.
The PUE 7.1 terminal has:
- 5.7-inch color resistive display
- A touch-sensitive keyboard
- ABS plastic housing
- IP 43 protection rating
- Communication interfaces: 2xRS232, 2xUSB-A, Ethernet, 4 IN/ 4 OUT, Wi-Fi®®,
- Optional additional modules: additional A/D converter module DP6.
The PUE HY10 terminal features:
-
10.1-inch color graphic display
-
Touchscreen keyboard
-
Stainless steel housing
-
IP 68/69 degree of protection
-
Communication interfaces: 2xRS232, 2xUSB-A, Ethernet, 4 IN/ 4 OUT,
- Optional additional modules: Wi-Fi®®, RS485, Profibus, Profinet, moduł wyjść analogowych, 12 IN/ 12 OUT.
The power of steel
The use of stainless steel for weighing pan construction guarantees you a long life for the scale. It is not afraid of contact with moist objects or accidental splashes.
The robustness and strength of the design of the HRP high-resolution scales makes it possible to weigh large objects, such as pallets of goods. The stable platform is resistant to vibration, which is important when weighing large objects.
Do you need ALIBI?
There you have it. ALIBI memory is like a black box of a scale. It records all measurements taken on the device. The ALIBI memory cannot be modified or erased.
Use the potential
Use theBarcode scanners, receipt printers, label printers or additional displays – thanks to multipurpose software, HY10 scale can work with all of them. You can find all accessories in our regular offer. And if you have questions about compatibility, our experts will help you.
Not just weighing
But also parts counting, checkweighing, percent weighing, animal weighing, formulations, differential weighing, labelling, peak hold and statistics. The power of HY10’s working mods.
Datasheet
|
Model No. |
HY10.10.HRP.H |
HY10.16.HRP.H |
HY10.32.HRP.H |
HY10.62.HRP.H |
HY10.120.HRP.H |
HY10.150.HRP.H |
|
Metrological parameters |
||||||
|
Maximum capacity [Max] |
10g |
16 g |
32 g |
62 g |
120 g |
150 g |
|
Readability [d] |
5 g |
5 g |
5 g |
25 g |
50 g |
50 g |
|
Preload range |
4 kg |
4 kg |
4 kg |
30 kg |
30 kg |
30 kg |
|
Readability [d] |
0.02 g |
0.1 g |
0.1 g |
0.1 g |
0.5 g |
1 g |
|
Tare range |
-10 g |
-16 g |
-32 g |
-62 g |
-120 g |
-150 g |
|
Repeatability |
0.03 g |
0.1 g |
0.1 g |
0.08 g |
0.3 g |
0.6 g |
|
Linearity |
±0.06 g |
±0.1 g |
±0.3 g |
±0.4 g |
±2 g |
±3 g |
|
Stabilization time |
2 s |
2 s |
2 s |
2 s |
3 s |
3 s |
|
Adjustment |
internal (automatic) |
|||||
|
Physical parameters |
||||||
|
Display |
10″ graphic colour touchscreen |
|||||
|
Weighing pan dimensions |
360×280 mm |
500×400 mm |
||||
|
Packaging dimensions |
- |
475×560×600 mm |
475×560×600 mm |
610×710×505 mm |
||
|
Net weight |
24.7 kg |
24.7 kg |
24.7 kg |
30 kg |
37 kg |
71.5 kg |
|
Gross weight |
28.7 kg |
28.7 kg |
28.7 kg |
35 kg |
52 kg |
119 kg |
|
Construction |
||||||
|
Protection class |
IP 66/67 construction, IP 68/69 indicator |
|||||
|
Construction |
Stainless steel AISI304 |
|||||
|
Weighing pan material |
Stainless steel AISI304 |
|||||
|
Communication interface |
||||||
|
Communication interface |
2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital) |
|||||
|
Optional interfaces |
module Wi-Fi® 802.11 b/g/n, module Profibus (DP SLAVE), module RS485, module PROFINET (RJ45), analog output module (4-20mA, 0-20mA, 0-10V) , 12IN / 12OUT (IN – 5-24 VDC, OUT – max 30 VDC, 0.5 ADC) |
|||||
|
Electrical parameters |
||||||
|
Power supply |
100 – 240 V AC 50/60 Hz |
|||||
|
Environmental conditions |
||||||
|
Operating temperature |
+10 — +40 °C |
+10 — +40 °C |
+10 — +40 °C |
+10 — +40 °C |
+10 — +40 °C |
+10 — +40 °C |
|
Relative humidity |
40% — 80% |
40% — 80% |
40% — 80% |
40% — 80% |
40% — 80% |
40% — 80% |
|
Model No. |
HY10.300.HRP.H |
HY10.300.1.HRP.H |
HY10.600.HRP.H |
HY10.1100.HRP.H |
HY10.2000.HRP.H |
|
Metrological parameters |
|||||
|
Maximum capacity [Max] |
300 g |
300 g |
600 g |
1100 g |
2000 g |
|
Readability [d] |
5 0 g |
5 0 g |
250 g |
500 g |
500 g |
|
Preload range |
60 kg |
60 kg |
60 kg |
100 kg |
200 kg |
|
Readability [d] |
1 g |
1 g |
5 g |
10 g |
10 g |
|
Tare range |
-300 g |
-300 g |
-600 g |
-1100 g |
-2000 g |
|
Repeatability |
3 g |
3 g |
7.5 g |
15 g |
30 g |
|
Linearity |
±6 g |
±6 g |
±15 g |
±30 g |
±60 g |
|
Stabilization time |
3 s |
3 s |
3 s |
3 s |
3 s |
|
Adjustment |
internal (automatic) |
||||
|
Physical parameters |
|||||
|
Display |
10″ graphic colour touchscreen |
||||
|
Weighing pan dimensions |
800×600 mm |
1000×800 mm |
1000×800 mm |
1000×800 mm |
1250×1000 mm |
|
Packaging dimensions |
800×1000×537 mm |
1000×1200×666 mm |
1000×1200×666 mm |
1000×1200×666 mm |
1250×1500×843 mm |
|
Net weight |
71.5 kg |
126 kg |
126 kg |
126 kg |
300 kg |
|
Gross weight |
119 kg |
160 kg |
160 kg |
160 kg |
425 kg |
|
Construction |
|||||
|
Protection class |
IP 66/67 construction, IP 68/69 indicator |
||||
|
Construction |
Stainless steel AISI304 |
||||
|
Weighing pan material |
Stainless steel AISI304 |
||||
|
Communication interface |
|||||
|
Communication interface |
2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital) |
||||
|
Optional interfaces |
module Wi-Fi® 802.11 b/g/n, module Profibus (DP SLAVE), module RS485, module PROFINET (RJ45), analog output module (4-20mA, 0-20mA, 0-10V) , 12IN / 12OUT (IN – 5-24 VDC, OUT – max 30 VDC, 0.5 ADC) |
||||
|
Electrical parameters |
|||||
|
Power supply |
100 – 240 V AC 50/60 Hz |
||||
|
Environmental conditions |
|||||
|
Operating temperature |
+10 — +40 °C |
+10 — +40 °C |
+10 — +40 °C |
+10 — +40 °C |
+10 — +40 °C |
|
Relative humidity |
40% — 80% |
40% — 80% |
40% — 80% |
40% — 80% |
40% — 80% |
*The power supply can be connected to the socket on the back of the balance housing or to the terminal.
