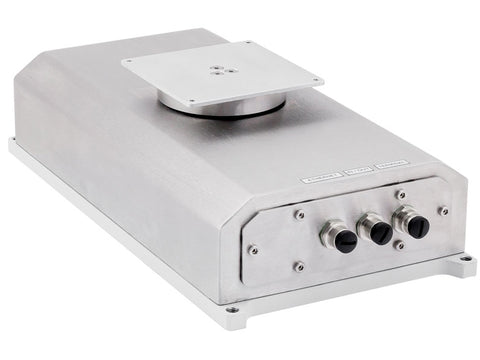

RADWAG MWSH 6000 Weighing Modules

RADWAG MWSH 6000 Weighing Modules

SKU: WX-016-0106

  • £5,12300
  • Save £90400

RADWAG MWSH 6000 Weighing Modules

Buy RADWAG products from MSE Supplies at the best value.

Sku #

WX-016-0106

Model #

MWSH 6000

Maximum capacity(g)

220

Readability(g)

0.01



Operation of professional MWSH electromagnetic high resolution modules is based on an electromagnetic digital converter.

The MWSH series is designed to be incorporated into customer's weighing systems requiring high IP rate, great weighing accuracy and high measurement speed.

Brand new, compact design favours unlimited module's adaptation capabilities. The module may be installed on technological lines thus ensuring quick and precise measurement in challenging industrial environment.

Features:

  • Brand new construction of the electromagnetic mechanism housed in a stainless steel casing (IP65),
  • Reading unit of 0,01 g,
  • Ease of adaptation to required usage area,
  • Internal adjustment,
  • Cooperation with HY10 terminal,
  • Interfaces: RS232, RS485, Ethernet, 2 IN/2 OUT.

Datasheet

Model No.

MWSH 6000

Metrological parameters

Maximum capacity [Max]

6000 g

Minimum load

500 mg

Preload range

600 g

Readability [d]

0.01 g

Tare range

-6000 g

Repeatability

15 mg

Linearity

±30 mg

Stabilization time

1.5 s

Adjustment

internal (automatic)

Construction

Protection class

IP 65

Housing

aluminum, Stainless steel

Communication interface

Communication interface

RS232, RS485, Ethernet, 2 IN / 2 OUT, PROFIBUS (option), PROFINET (option)

Electrical parameters

Power supply

100 – 240 V AC 50/60 Hz

Environmental conditions

Operating temperature

+10 — +40 °C

Relative humidity

15% — 80%

Physical parameters

Weighing pan dimensions

100×100 mm

Device dimensions

336×175×96 m

Packaging dimensions

580×335×280 mm



*The power supply can be connected to the socket on the back of the balance housing or to the terminal.

MSE Supplies is an authorized distributor for RADWAG.
