MSE PRO Rotary Evaporator with Electric Flask Lift
SKU: LS0201
MSE PRO Rotary Evaporator with Electric Flask Lift
Product Details:
MSE PRO rotary evaporators come with a modular heating bath, vertical glassware, and digital temperature/rotation control. It is widely used in the lab research, quality assurance, agricultural, chemical, pharmaceutical, and biotechnology industries.
Product Features:
- Solvent-resistant PTFE and Viton gaskets ensuring durability
- Straight-forward operation with digital speed and temperature display
- Specialized motor with low noise, vibration-free operations
| SKU# |
LS0201
|
LS0202 | LS0203 | LS0204 |
| Rotary Bottle Volume (L) | 5 | 10 | 20 | 50 |
| Recovery Bottle Volume (L) | 3 | 5 | 10 | 20 |
| Rotation Speed (rpm) | 20~140 | 20~130 | 20~130 | 20~110 |
| Temperature Control Range (℃） | RT~250 | RT~250 | RT~250 | RT~250 |
| Maximum Vacuum (Pa) | ≤399.9 | ≤399.9 | ≤399.9 | ≤399.9 |
| Evaporation Rate (L/h) |
Water≥2 Ethanol≥4 |
Water≥3.2 Ethanol≥6.5 |
Water≥5 Ethanol≥11 |
Water≥9 Ethanol≥19 |
| Bath Dimension (mm) | ø300x170 | ø350x220 | ø450x260 | ø550x320 |
| Bath Volume (L) | 12 | 21 | 41 | 76 |
| Stoke (mm) | 100 | 160 | 190 | 180 |
| Overall Dimensions (mm) | 7650x400x1070 | 920x550x1700 | 1250x600x2100 | 1320x770x2340 |
| Voltage (V) | 110 Single Phase | 110V Single Phase | 220V Single Phase | 220V Single Phase |
| Weight (kg) | 50 | 120 | 140 | 180 |
| Compatible MSE Vacuum Pump | LS0210 | LS0211 | LS0211 | LS0211 |
| Compatible MSE Water Chiller |

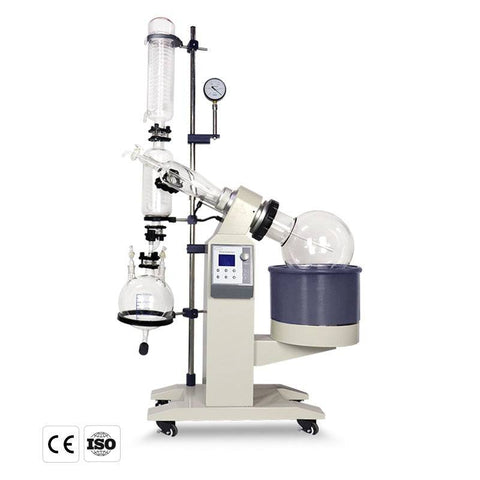

Product figure is for reference only. Actual product may look different based on configurations. Please contact us for customization or bulk orders.
This rotary evaporator is CE certified. Vacuum pump and water chiller is recommended to ensure the best condensation.
