Spectro-EFC 1.75 mL - Spectro-Electrochemical Flow Cell Setup

Spectro-EFC 1.75 mL - Spectro-Electrochemical Flow Cell Setup

Buy Redox.me products from MSE Supplies at the best value.

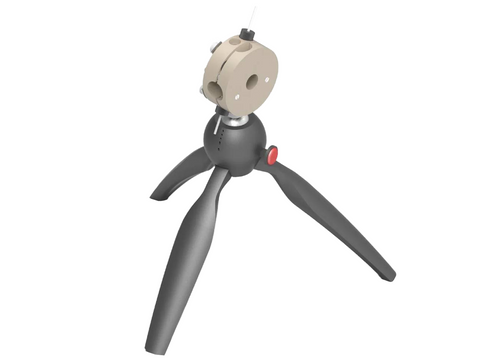

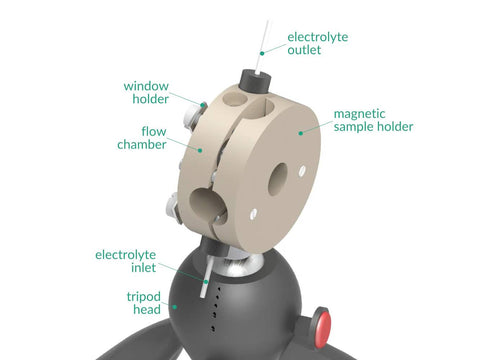

This is a horizontally mounted, multi-purpose spectroelectrochemical cell designed to be used with standard UV-Vis or IR spectrometers. It enables obtaining electrochemical and spectroscopic information from liquid sample or thin films in systems where variations in applied potential induce changes in observed spectra. It consists of a polyether ether ketone (PEEK) flow chamber equipped with a magnetic or screw mount sample holder, a screw mount quartz window holder and two different mini tripods. It well fits aqueous (FKM O-Rings) and organic solvent (FFKM O-Rings) electrolyte requirements.

Application note

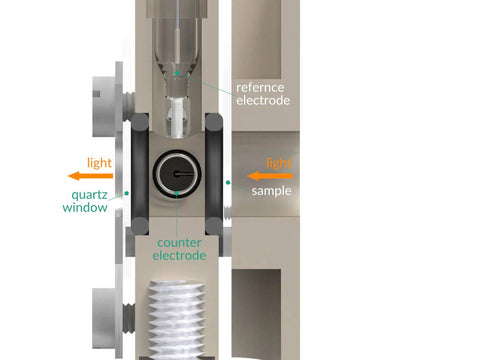

The spectroelectrochemical cell is used to study the relation between absorbance/transmittance and electrochemical potential. It enables real-time monitoring of optical change in electrochromic materials. It also enables in-situ spectral acquisition for detection, identification and characterization of short-lived electrochemically-generated species/intermediates, resulting in a detailed investigation of the mechanistic pathways of redox processes.

Specification:

Nominal exposure area: 1 cm² (other values on request)
Optical path length (electrolyte thickness): 12 mm
Flow chamber volume: 1.75 mL

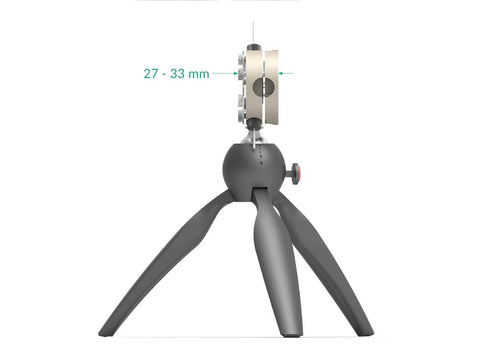

Maximum substrate thickness: 4 mm
Electrode plug diameter: 6 mm
Minimum substrate size: 17 mm x 25 mm
Recommended substrate size: 25 mm x 25 mm

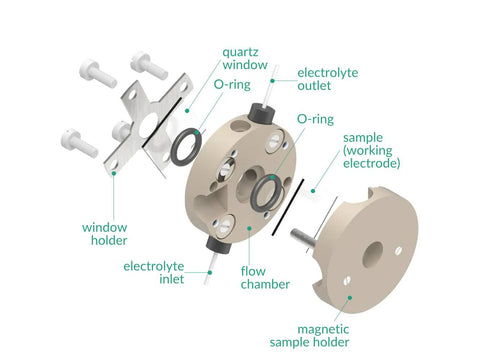

Product Includes

1 x sample mount
1 x flow chamber
1 x quartz window - 0045PQGMA
1 x window holder - 0042PSSMA
1 x set of screws – 0032PNYCM
1 x plug

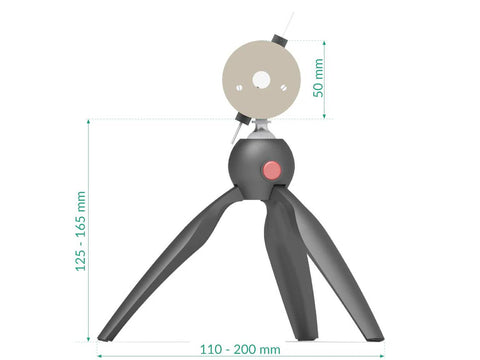

1 x Manfrotto PIXI table tripod – 0028PHYCM
1 x XS Bendy Flexible Tripod - 0043PHYCM

Setup Includes:

Spectro-Efc 1.75 ml - Spectro-Electrochemical Flow Cell 1.75 ml, Magnetic Mount, Screw Mount

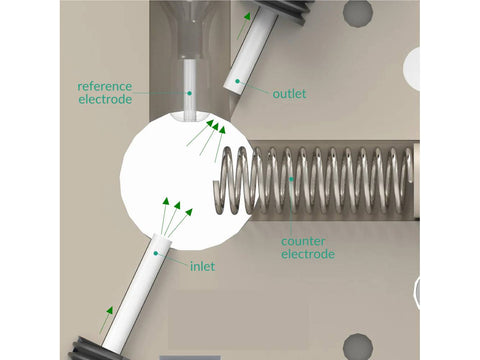

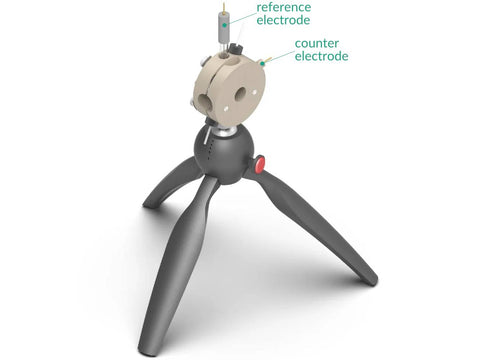

Metal Wire Auxiliary Electrode - 35Hx15 0.6/235 mm, Platinum (99,9%), 1 mm Dia. Gold Plated Pin
Silver / Silver Chloride Reference Electrode - Ag/Agcl 30 mm, Non-Aqueous Silver - Ag/Ag+ 30 mm
